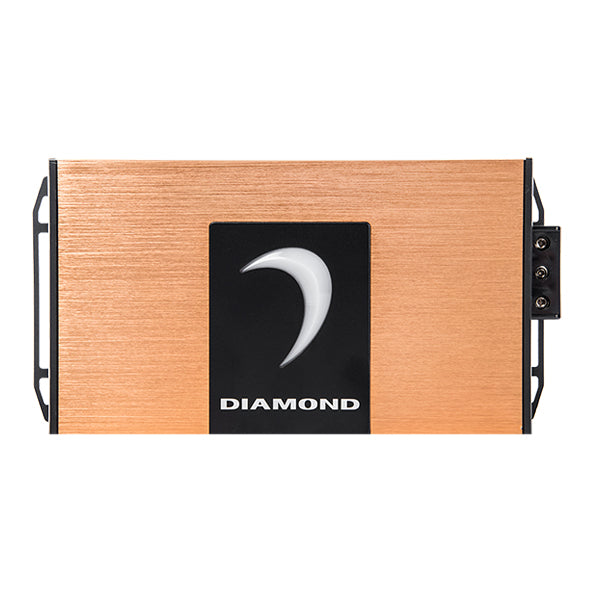

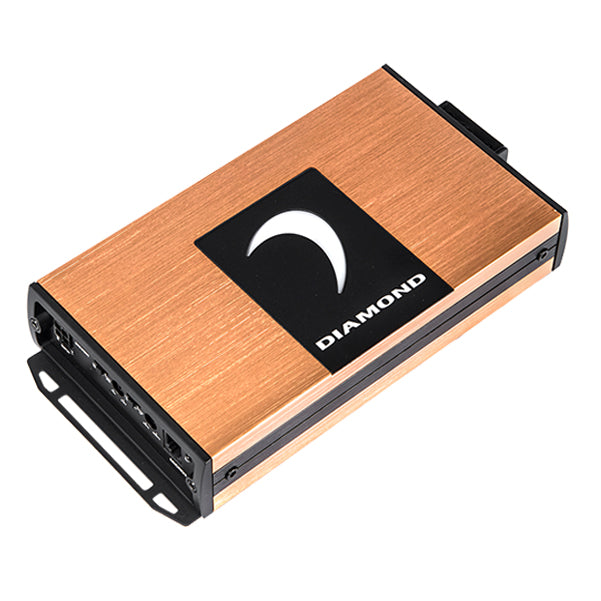

Diamond Audio MICRO2V2 500 Watt RMS 2 Channel Amplifier

The Diamond Audio MICRO2V2 2 channel 500 watt amp features:

• Ultra-compact, high density aluminum alloy chassis provides superior thermal stability
• Four layer, glass epoxy circuit board for enhanced performance and reliability
• Full Range Class D amplifier technology
• Balanced differential inputs for superior noise rejection
• Input sensitivity from 200mV to 10V accepts line (RCA) and Speaker level input
• Selectable auto-turn-on modes: Signal Sensing (VOX), 12V Remote (REM) and DC offset (DC)
• Fully variable, 12dB per octave, electronic crossover
• Variable 18dB per octave sub-sonic filter
• Adjustable Bass EQ (45Hz: 0dB to +12dB)
• Wired Remote Level Control included
• Illuminated logo

Download Diamond audio MICRO2V2 Owners Manual

Specs

• RMS Power Rating
  • RMS Power (2Ω): 250W X 2
  • RMS Power (4Ω): 150W X 2
  • Bridged (mono 1Ω): N/A
  • Bridged (mono 2Ω): N/A
  • Bridged (mono 4Ω): 500W
• Type
  • Topology: Full Range Class D
• Power Supply
  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0VDC - 17.0VDC
  • Idle Current: (0.7A)
• Distortion
  • THD 4 (1KHx @ 4Ω): 0.5%
  • S/N Ratio (A weighted @1W): -85dBA
  • S/N Ratio (A weighted @FP): -101.1dBA
• Input Sensitivity
  • Low Input Level: 200mV - 10.0V
  • High Input Level: up to 10.0V
• Input Impedance
  • Low Input Level: 20KΩ
  • High Input Level: 20KΩ
• Output Stage
  • Output Impedance: 0.011Ω
  • Damping Factor (50Hz@4Ω): >250
  • Bandwidth (-3dB): 10Hz - 350Hz
• Crossover (-12dB/Oct)
  • Variable High-Pass:40Hz - 400Hz
  • Variable Low-Pass: 40Hz - 400Hz
• Fuse Ratings
  • ATC: 25A

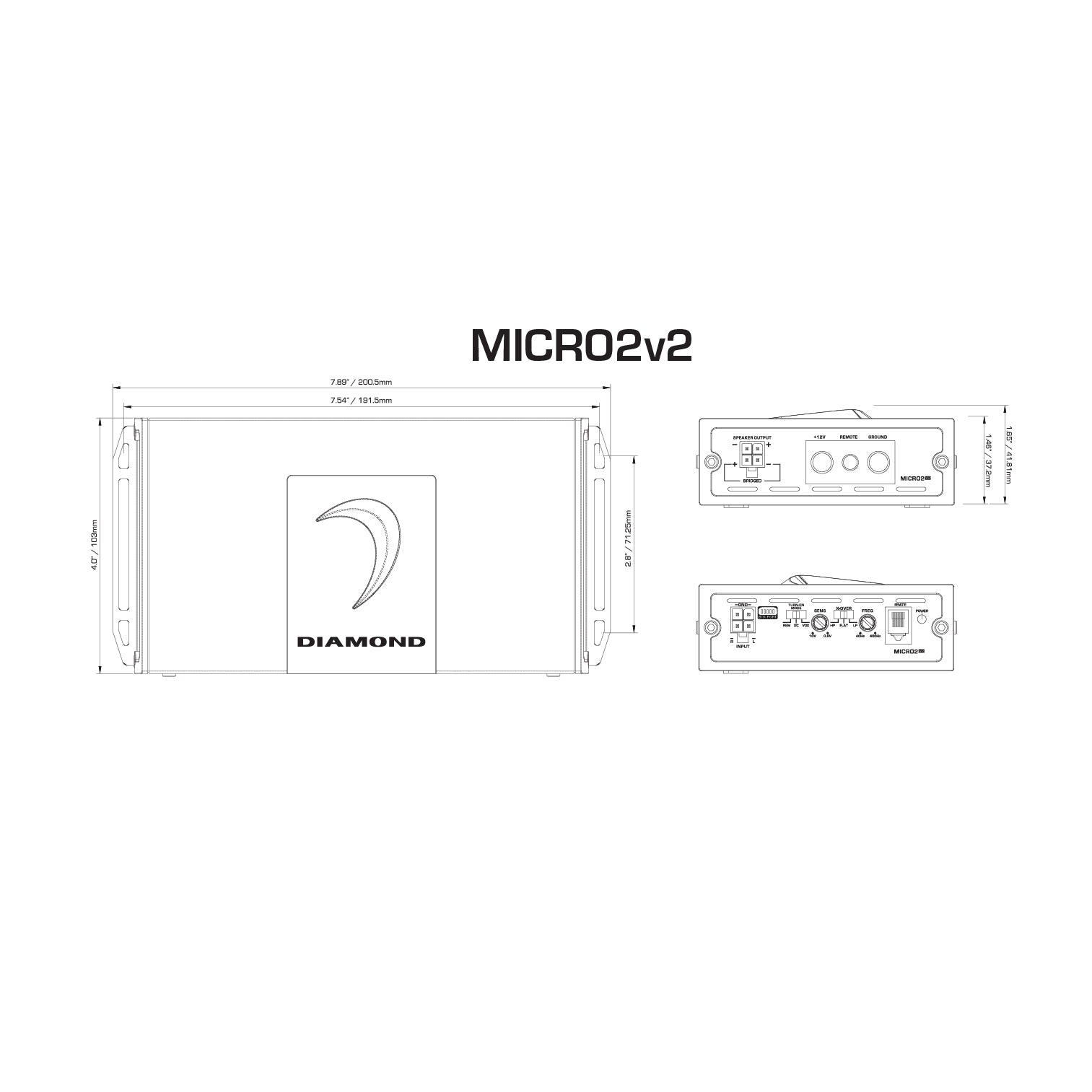

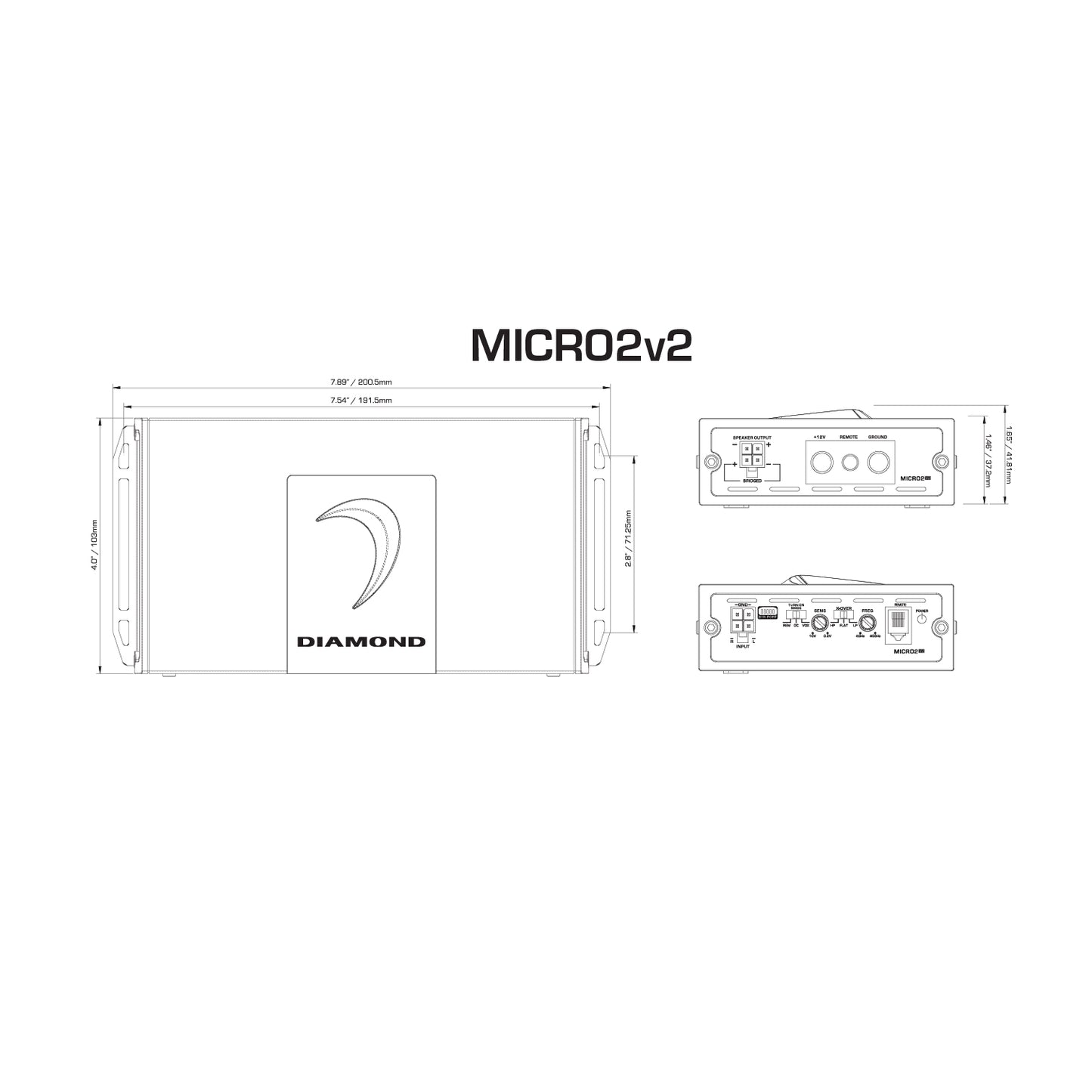

• Dimensions
  • Length x Width x Height (Inches): 7.89 x 4.0 x 1.46
  • Length x Width x Height (mm): 200.5 x 103 x 37.2
