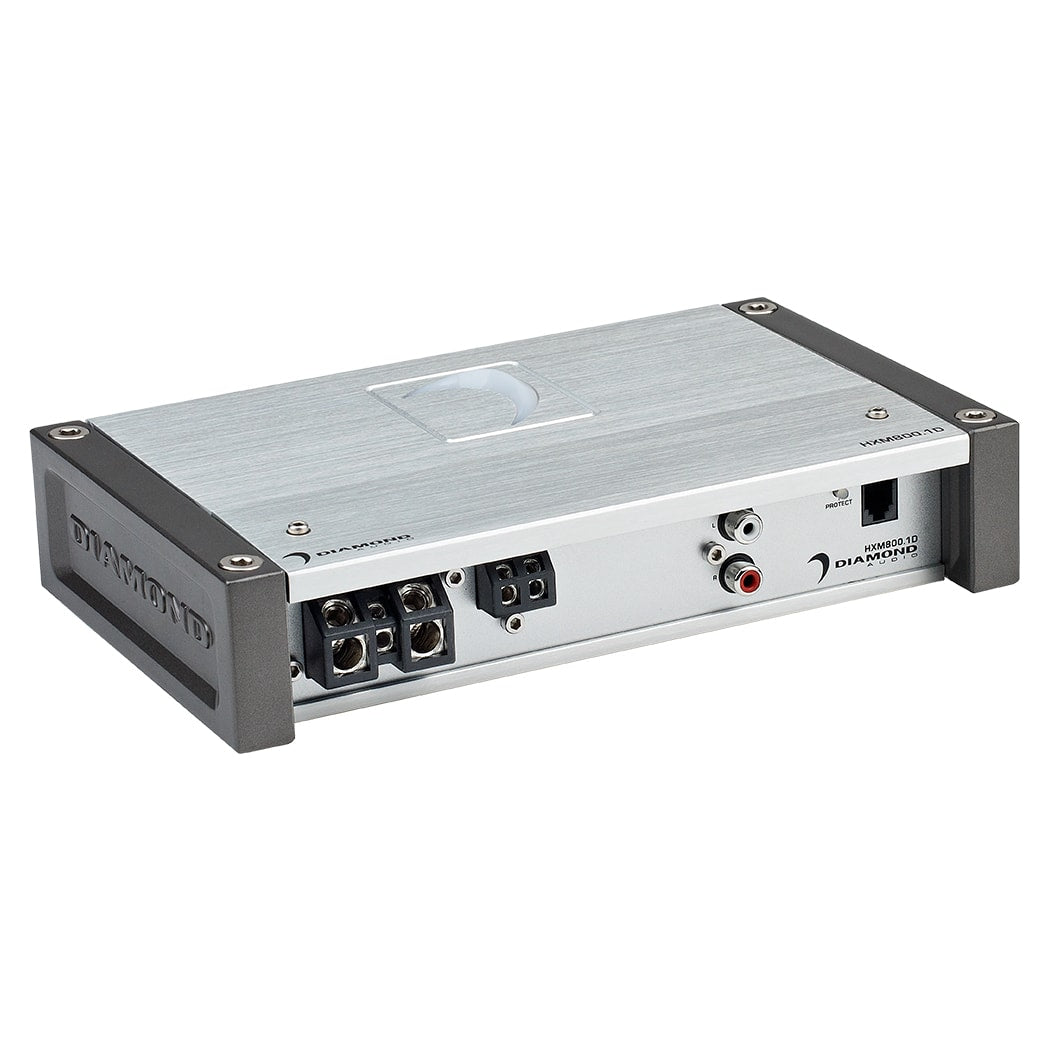

Diamond Audio HXM800.1D Marine Grade 800 Watt Mono Block Amp

• Ultra-compact, high density aluminum alloy chassis provides superior thermal stability
• Four layer, glass epoxy circuit board for enhanced performance and reliability
• Circuit board conformal coated (water resistant) for marine applications
• Full Range Class D amplifier technology
• Balanced differential inputs for superior noise rejection
• Input sensitivity from 200mV to 10V accepts Line (RCA) and Speaker level input
• Selectable auto-turn-on modes: Signal Sensing (VOX), 12V Remote (REM) and DC offset (DC)
• Fully variable, 12dB per octave, electronic crossover
• Variable 18dB per octave sub-sonic filter
• Phase adjustable from 0 to 180 degrees
• Adjustable Bass EQ (45Hz: 1dB to +12dB) / remote level control included
• Built-in BTR Port (MICRO-USB) to connect our optional Bluetooth receiver-controller
• Top mounted controls for convenient adjustment
• Integrated soft clip light for quick system set-up
• Illuminated logo

Download the Diamond Audio HXM800.1D Owners Manual

Specs

RMS Power Rating

• RMS Power (1Ω):   800 W X 1
• RMS Power (2Ω):  550 W X 1
• RMS Power (4Ω): 350 W X 1
•

Type

• Topology: MonoBlock Class D

Power Supply

• Power Supply: Full PWM
• Power Supply Threshold: 10.0VDC-17.0VDC
• Idle Current: (0.7A)

Distortion

• THD (1KHz@4Ω) : 0.05%
• S/N Ratio (A weighted@1W): -77.2dBA
• S/N Ratio (A weighted@FP): -98.9dBA

Input Sensitivity

• Low Input Level: .2mV-10.0V
• High Input Level: Yes - Up to 25W RMS

Input Impedance

• Low Input Level: 22 KΩ
• High Input Level: 22 KΩ

Output Stage

• Output Impedance: 0.047Ω
• Damping Factor (50Hz@4Ω): >250
• Bandwidth (-3dB): 10Hz-350Hz

Crossover (-12dB per Octave)

• Variable High-Pass: N/A
• Variable Low-Pass: 30Hz - 300Hz
• Variable Sub-Sonic: 10Hz - 55Hz

Recommended Fuse Rating

• ATC: N/A

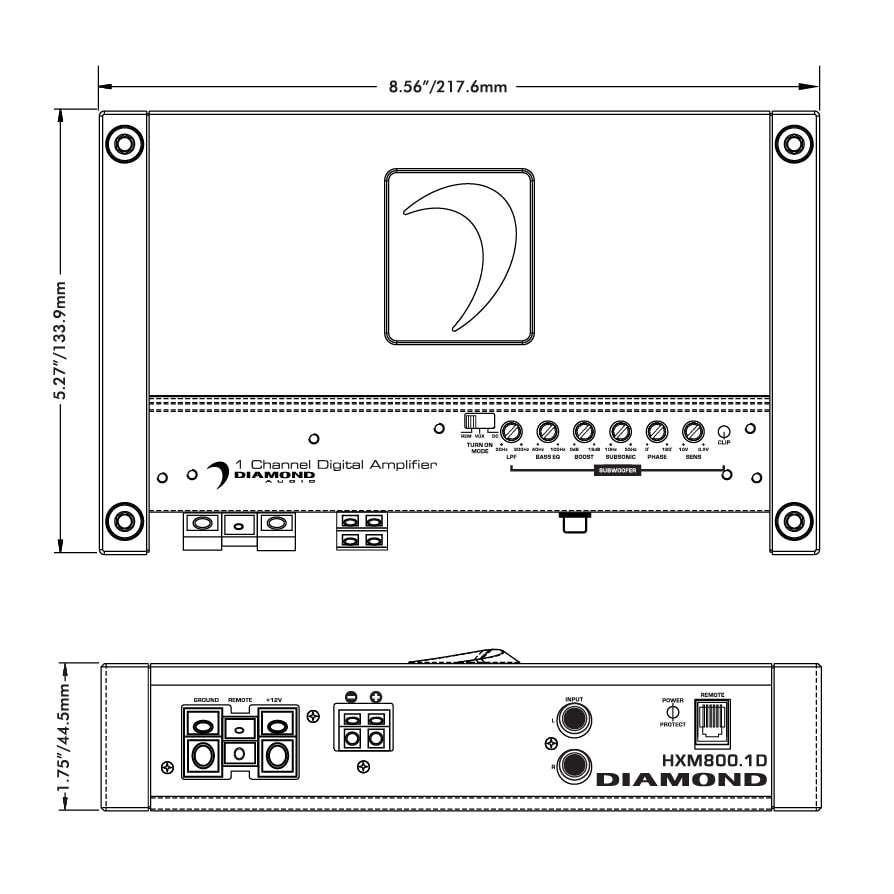

Dimensions

• Length x Width x Height (Inches): 8.56 x 5.27 x 1.75
• Length x Width x Height (mm): 297.6 x 133.9 x 44.5
