Diamond Audio HX1200.5 5 Channel 1200 Watt RMS Class D Amp

The Diamond Audio HX1200.5 is a HEX Series five-channel full-range Class D amplifier that powers a complete four-speaker system and a subwoofer from one chassis, rated at 100 watts RMS x 4 plus 480 watts RMS x 1 into 4 ohms, or 150 watts RMS x 4 plus 800 watts RMS x 1 into 2 ohms, for 12-volt car, truck and UTV audio builds.

Key Benefits

• One amplifier replaces two — four full-range channels for front and rear speakers plus a dedicated subwoofer channel, so a single power and ground run feeds the whole system.
• Diamond rates the HX1200.5 in RMS: the 1,200-watt figure is four channels at 100 watts RMS into 4 ohms plus the subwoofer channel at 800 watts RMS into 2 ohms, not a peak number.
• Channels 1 to 4 bridge to 300 watts RMS x 2 into 4 ohms, so the same chassis can instead run a two-way active front stage with real power.

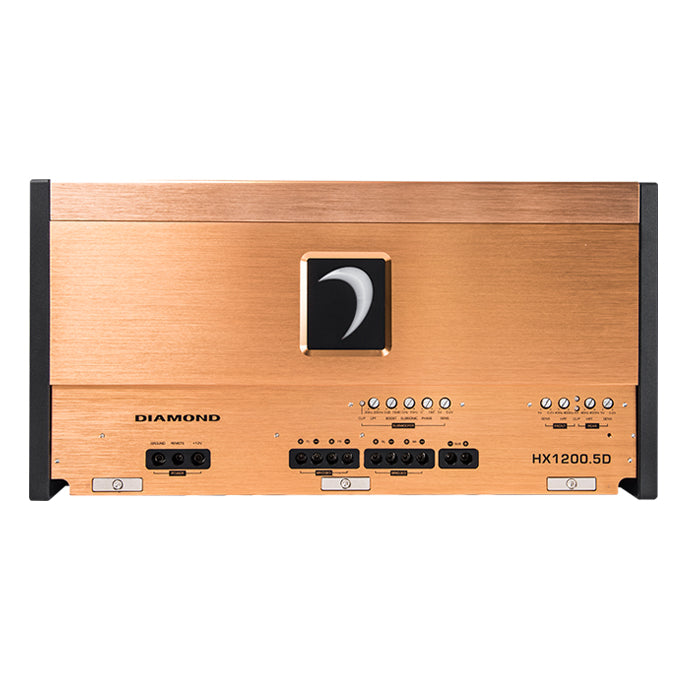

• Independent filters per section: a 40 Hz to 400 Hz high-pass on channels 1 to 4 and a 30 Hz to 300 Hz low-pass on channel 5, both at 12 dB per octave, plus a 10 Hz to 55 Hz subsonic filter at 18 dB per octave to protect a ported box below tuning.
• Four-layer PCB with balanced differential inputs and 200 mV to 5.0 V input sensitivity, so it takes a factory signal or a high-output preout without picking up alternator whine.
• Wide 10 Hz to 35 kHz bandwidth and a damping factor above 250 at 50 Hz into 4 ohms for tight control of the woofers.

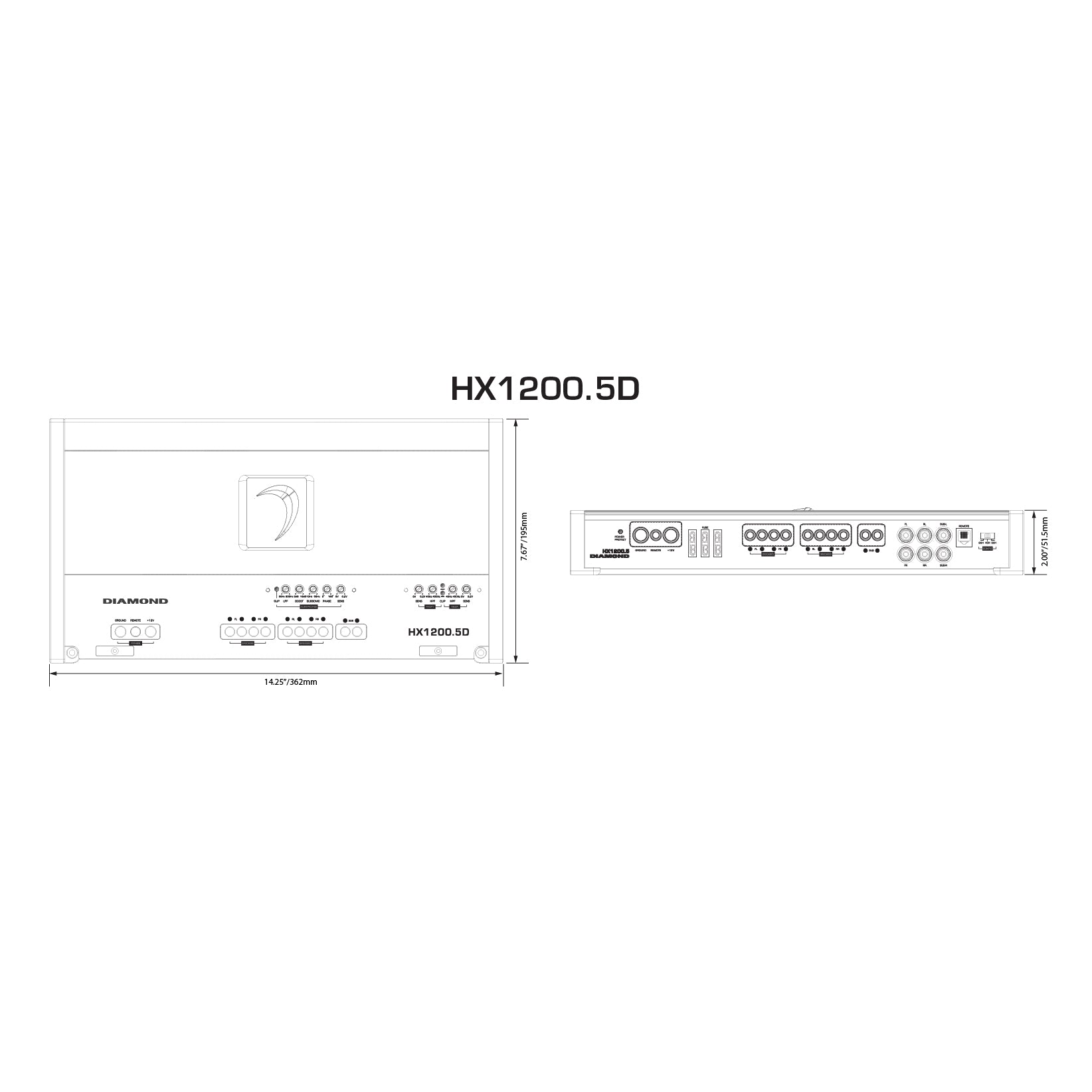

• Compact 14.25 x 7.67 x 2 inch anodized aluminum chassis with output clip indicators for setting gains by eye.

What's Included

• HX1200.5 five-channel amplifier
• Wired remote bass level control

Fitment

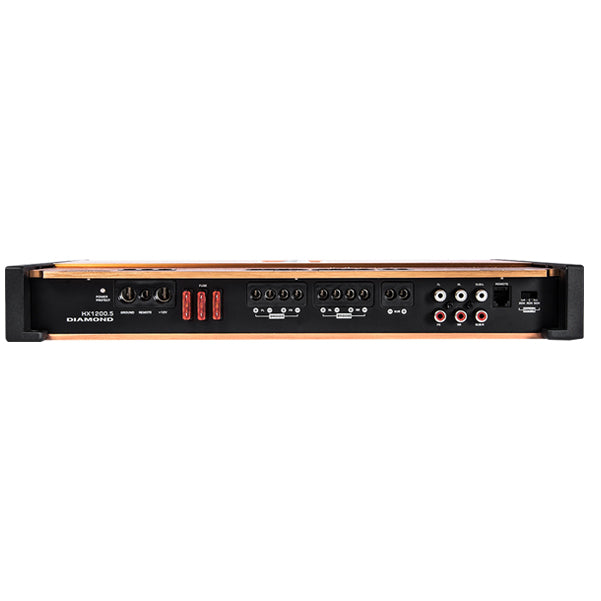

This is a universal 12-volt amplifier, not a vehicle-specific part. It fits any car, truck, Jeep or side-by-side build with room for the 14.25 x 7.67 x 2 inch chassis and power and ground wiring sized for its 120 amps of on-board ATC fusing (three 40-amp fuses). It runs on 10.0 to 17.0 volts DC and draws 0.7 amps at idle.

Match it to the load, not the vehicle. Four-ohm speakers on channels 1 to 4 get 100 watts RMS each and 2-ohm speakers get 150 watts RMS each; the subwoofer channel makes 480 watts RMS into 4 ohms and 800 watts RMS into 2 ohms, so a dual-4-ohm subwoofer wired in parallel is the natural pairing for full output.

Do not confuse it with its siblings in the HEX Series. The HX1200.5 is the five-channel amplifier with a built-in subwoofer channel; the HX480.4 is the four-channel speaker amplifier with no subwoofer channel, and the HX1600.1D and HX1200.1D are dedicated monoblock subwoofer amplifiers that drive no full-range speakers at all.

Diamond Audio lists the HEX Series under car audio and publishes no IP rating, marine rating or conformal-coating claim for it. In an open cab or a side-by-side, mount it in a dry, protected location such as under a seat or inside a sealed enclosure.
