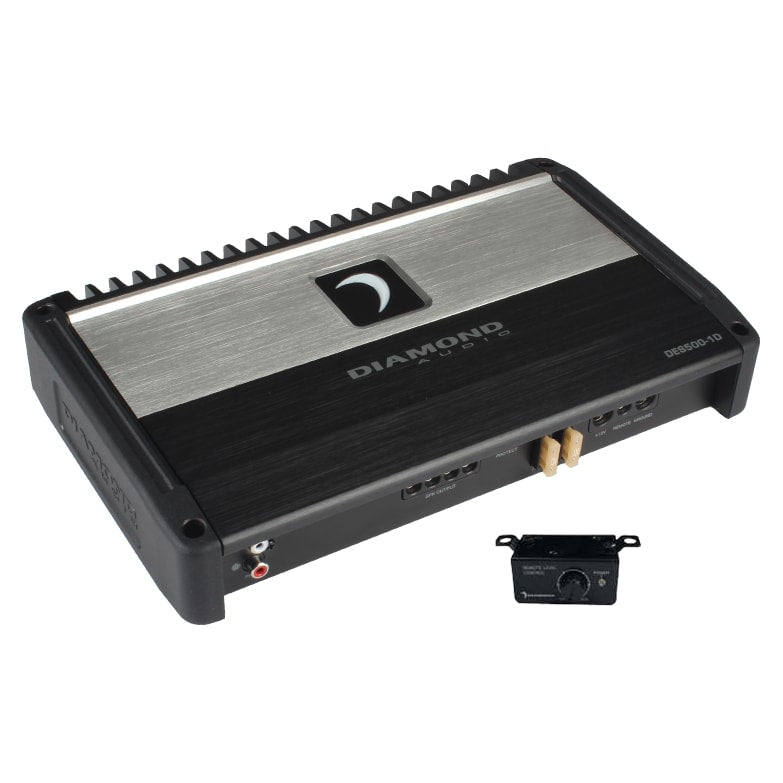

Diamond Audio DES500.1D 500 Watt Mono Block Amplifier

Product Description
The Diamond Audio DES500.1D is a 500 watt mono block amplifier and features:
  • 500X1 @ 2Ω and 1Ω RMS
  • S/N: < 100dBA
  • Dimensions:
  • 11.81” X 2” X 7.67”
  • 300mm X 50.8mm X 195mm
  • Remote Level Control Included
  • RMS Power Rating
    • RMS Power (4Ω): 500 W x 1
    • RMS Power (2Ω): 500 W x 1
  • Type
    • Topology: Class D
  • Distortion
    • THD 4(1KHz@4Ω) : 0.3%
    • S/N Ratio: ≤ 90 dBA
  • Input Sensitivity
    • Low Input Level: 150mV - 5.0V
    • High Input Level: N/A
  • Crossover(-24dB/Oct)
    • Variable High-Pass: N/A
    • Variable Low-Pass: 35-350Hz @ 12dB / Oct
    • Variable Sub-Sonic: 15-75Hz @18dB/Oct
  • Bass Remote
    • Included 12dB @ 45Hz
  • Dimensions
    • Length x Width x Height(Inches): 11.81 x 2 x 7.67 inches
    • Length x Width x Height(mm): 300 x 50.8 x 195 mm
Sku: DES500.1D
$419.99
