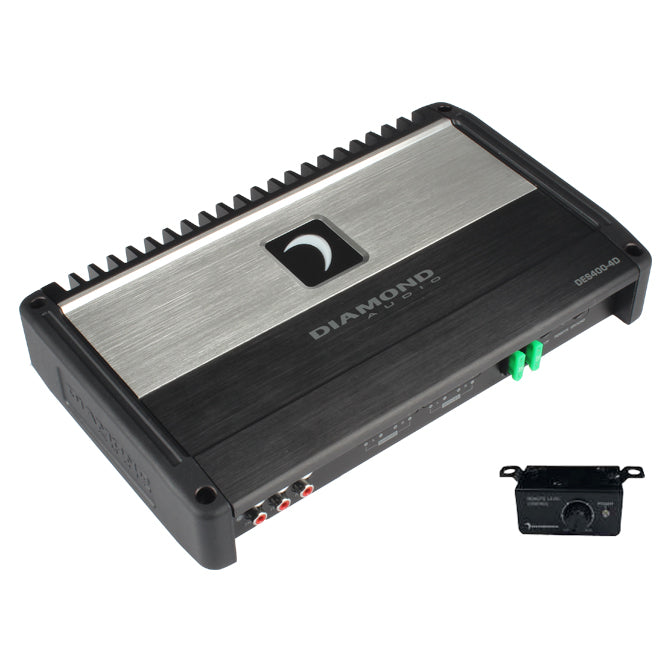

Diamond Audio DES400.4D Full Range Class D Amp

• 100X4 @ 4Ω, 2Ω & 1Ω RMS
• 300X2 @ 4Ω and 2Ω RMS
• S/N: < 100dBA
• Dimensions:        11.81” X 2” X 7.67”
• 300mm X 50.8mm X 195mm

Specs

• RMS Power Rating
  • RMS Power (4Ω): 100 W x 4 / 300 W x 2
  • RMS Power (2Ω): 100 W x 4 / 300 W x 2
  • RMS Power (1Ω): 100 W x 4

• Type
  • Topology: Full Range Class D

• Distortion
  • THD 4(1KHz@4Ω) : 0.06%
  • S/N Ratio: ≤ 100 dBA

• Input Sensitivity
  • Low Input Level: 150mV - 5.0V
  • High Input Level: N/A

• Crossover(-24dB/Oct)
  • Variable High-Pass: 35-350Hz @ 12dB / Oc
  • Variable Low-Pass: 50-250Hz @ 12dB/Oc
  • Variable Sub-Sonic: N/A

• Bass Remote
  • N/A

• Dimensions
  • Length x Width x Height(Inches): 11.81 x 2 x 7.67 inches
  • Length x Width x Height(mm): 300 x 50.8 x 195 mm
