Bilstein

Bilstein B8 8112 Front Right Coilover for 15-24 Ford F-150 4WD

Bilstein B8 8112 Front Right Coilover for 15-24 Ford F-150 4WD

$1,160.00 USD
$1,160.00 USD
Sale Sold out
Shipping calculated at checkout.

41-326725

In stock
  • Calculated shipping — oversized item
  • Ships in 1–2 business days
  • 30-day hassle-free returns
  • Price match — found it cheaper?
  • Secure checkout — SSL encrypted

Key Features

  • Position-sensitive ZoneControl CR damping adapts to suspension travel for control on and off road
  • Triple-piston valving provides 3 stages of compression and 2 stages of rebound damping
  • Adjustable front lift from 0.7 to 2.7 inches lets you set your preferred stance
  • 2.65-inch monotube body resists fade for consistent performance
  • Direct bolt-on corner module designed specifically for the F-150 4WD

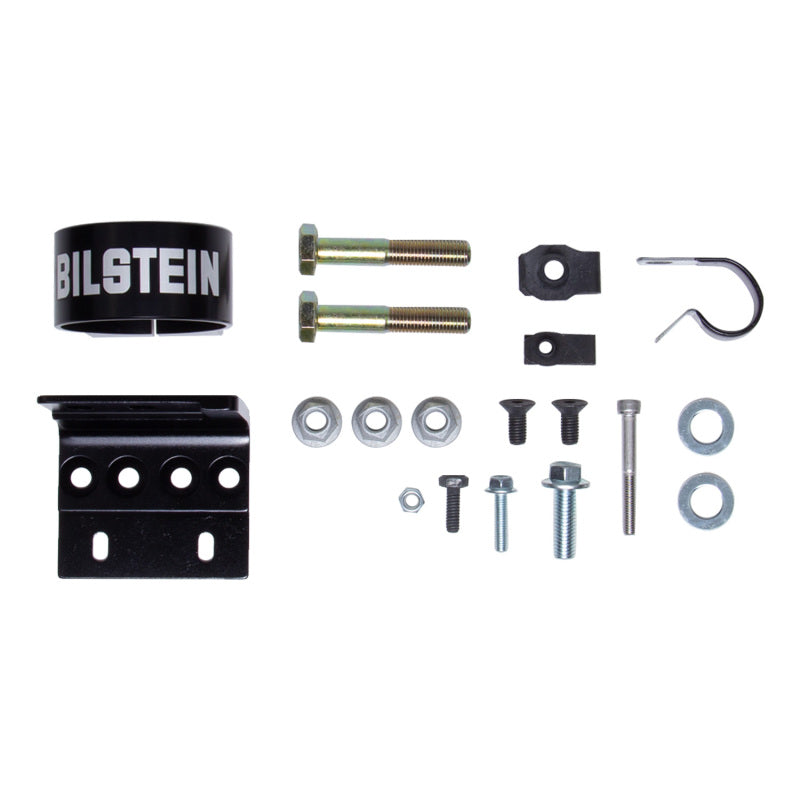

  • Includes remote reservoir with bolt-on anodized chassis mount
  • Backed by Bilstein's reputation for durable, German-engineered suspension

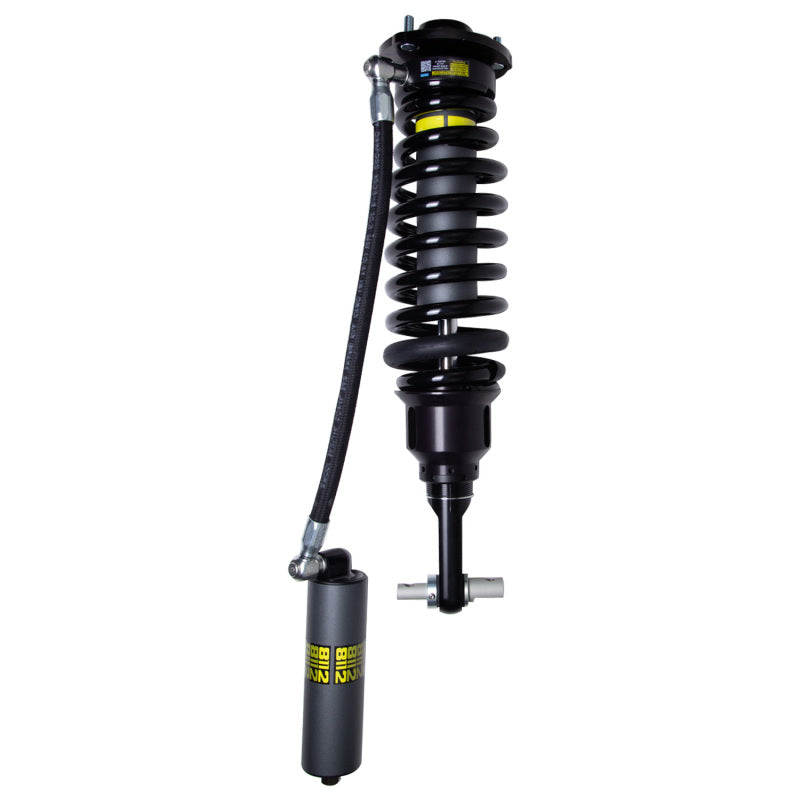

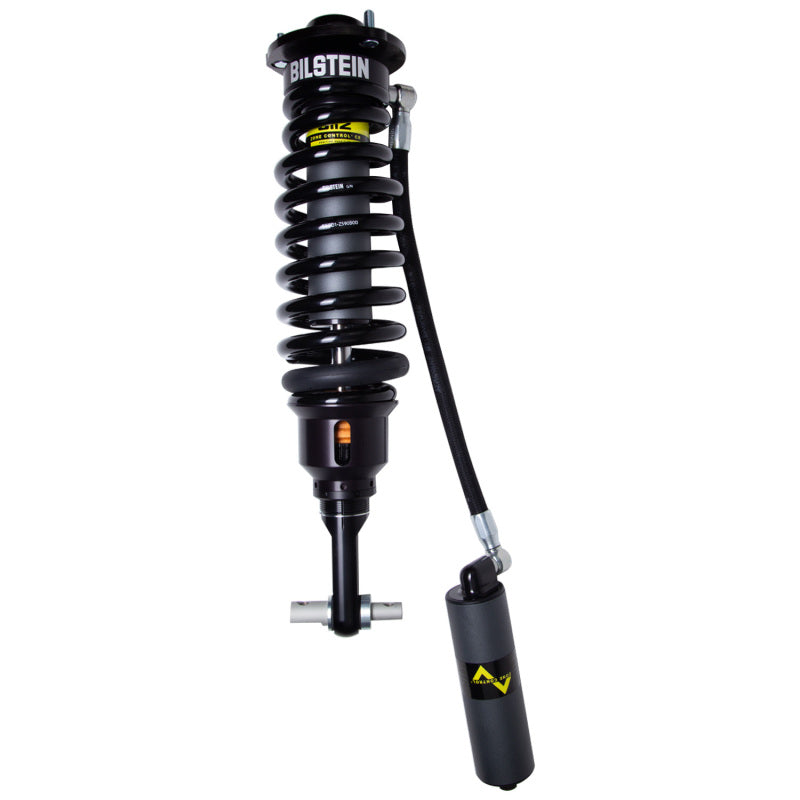

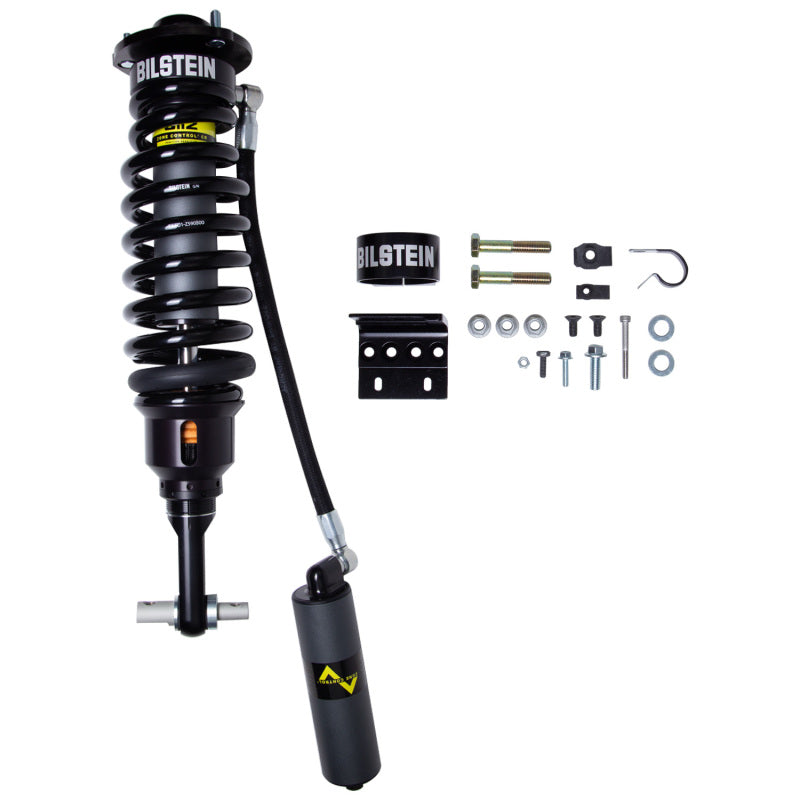

The Bilstein B8 8112 ZoneControl CR (part 41-326725) is a bolt-on front-right coilover corner module for the 2015-2024 Ford F-150 4WD, delivering 0.7 to 2.7 inches of adjustable front lift with position-sensitive damping.

Key Benefits

  • Position-sensitive ZoneControl CR damping adapts to suspension travel for control on and off road
  • Triple-piston valving provides 3 stages of compression and 2 stages of rebound damping
  • Adjustable front lift from 0.7 to 2.7 inches lets you set your preferred stance
  • 2.65-inch monotube body resists fade for consistent performance
  • Direct bolt-on corner module designed specifically for the F-150 4WD
  • Includes remote reservoir with bolt-on anodized chassis mount
  • Backed by Bilstein's reputation for durable, German-engineered suspension

Fitment

Fits 2015-2024 Ford F-150 4WD trucks. This is the front RIGHT (passenger-side) corner, sold individually as a single coilover module. Does not fit the F-150 Raptor or 2WD F-150 models. The matching front-left corner is a separate part number — order both to complete the front axle.

Specifications

  • 2.65 in monotube coilover body
  • Triple-piston valving: 3 stages compression, 2 stages rebound
  • 0.7-2.7 in adjustable front lift via threaded/snap-ring spring seat
  • Position-sensitive ZoneControl CR damping
  • Remote reservoir with bolt-on anodized chassis mount
  • Application-specific F-150 4WD tuning

FAQ
Does the Bilstein 8112 41-326725 fit both sides?

No. This part is the front-right (passenger) corner only. The front-left corner is a separate part number; buy both for a complete front pair.

How much lift does it provide?

0.7 to 2.7 inches of adjustable front lift, set through the spring-seat position.

Will it fit my F-150 Raptor?

No. This 8112 module is engineered for the standard 2015-2024 F-150 4WD and is not designed for the Raptor.

Vehicle Fitment
Years Make Model SubmodelPosition
2015–2024 Ford F-150 —Front right

Specifications
weight
44.8 lbs
dimensions
33.0 L × 11.8 W × 9.1 H in

Shipping & Returns

Free shipping on orders $250+ (standard items). Oversized items ship at calculated rates.

30-day returns with RMA required. 15% restocking fee, buyer pays return shipping. Defective items returned free with full refund.
