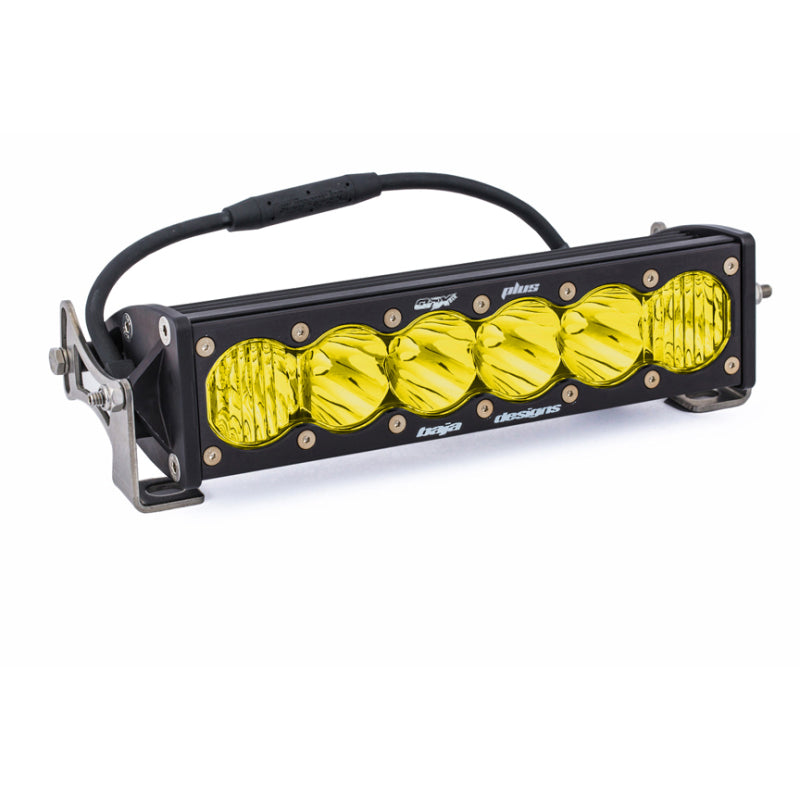

Baja Designs OnX6+ 10in Amber Driving/Combo LED Light Bar

Cut through dust, fog, and pitch-black trails with the Baja Designs OnX6+ 10-inch Driving/Combo LED light bar in amber. Built for serious off-road use, it blends a wide 42-degree driving beam with a focused 6-degree spot to light up both the near field and the distance ahead.

Key Benefits

• Amber output cuts glare and improves visibility in dust, fog, and snow
• Driving/Combo beam blends wide near-field coverage with long-distance spot throw
• 10,817 lumens of usable light from a compact 10-inch bar
• IP69K rated — waterproof to 9 feet and pressure-washable
• Battery Management Technology protects your electrical system and prevents flicker
• uService design lets you swap lenses and optics without replacing the bar

What's Included

• OnX6+ 10-inch amber driving/combo LED light bar
• Stainless steel mounting brackets and hardware
• Limited lifetime warranty
• Wiring harness NOT included — order Baja Designs 640115 separately

Specifications

• Beam pattern: Driving/Combo (42° driving + 6° spot)
• Lens color: Amber
• Output: 10,817 lumens (high) / 9,230 lumens (low)
• Power: 106.26 watts, 7.7 amps (high mode)
• Dimensions: 10" L x 2.69" H x 4.29" D
• Weight: 4.25 lbs
• Housing: Aircraft-grade aluminum, mil-spec hard anodize
• Lens: Hard-coated polycarbonate; bezel: billet machined aluminum
• IP69K waterproof rating
• LED life expectancy: ~49,930 hours

Fitment

Universal fit. The included stainless steel brackets mount to a wide range of trucks, Jeeps, UTVs, SxS, and off-road rigs. Application is mount-location dependent — confirm available space and mounting points on your vehicle.

• Universal — no vehicle-specific application
• Wiring harness 640115 required and sold separately
