ARB

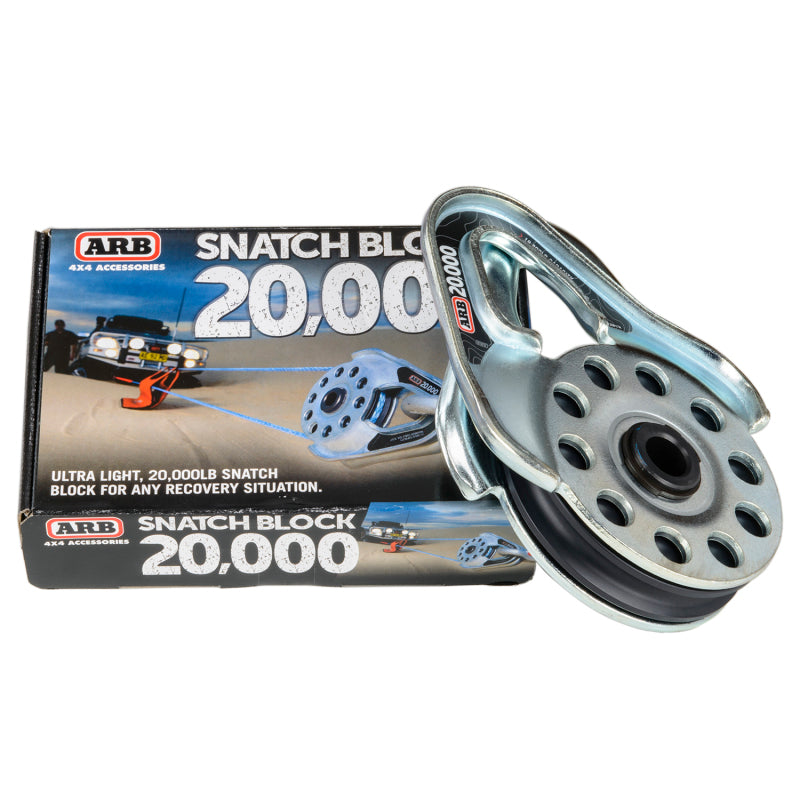

ARB Ultra Light Snatch Block 20,000 lb Winch Recovery Pulley
ARB Ultra Light Snatch Block 20,000 lb Winch Recovery Pulley
SKU:10100020A
In stock
- Free shipping on orders $250+
- Ships in 1–2 business days
- 30-day hassle-free returns
- Price match — found it cheaper?
- Secure checkout — SSL encrypted
Key Features
- Ultra-light winch recovery pulley, easy to carry and rig
- 20,000 lb working load limit; 38,500 lb minimum breaking strength
- Works with synthetic rope or steel cable from 1/4 to 1/2 inch
- Side plates sit snug so the line cannot become trapped
- Doubles pulling power or redirects a pull; ARB MPN 10100020A
The ARB 10100020A Ultra Light Snatch Block is a 20,000 lb recovery pulley for winch operations. It lets you double your winch's pulling power or redirect a pull around an obstacle, with an ultra-light construction that is easy to carry and rig.
Application
Universal winch recovery accessory. Compatible with synthetic winch rope and steel cable from 1/4 inch up to 1/2 inch.
Use a snatch block to increase mechanical advantage on a difficult recovery or to change the direction of pull.
FAQ
FAQ
What is the working load limit?
20,000 lb, with a minimum breaking strength of 38,500 lb.
Does it work with synthetic rope?
Yes. It is designed for synthetic winch rope and steel cable from 1/4 inch up to 1/2 inch.
What does a snatch block do?
It doubles your winch's pulling power or lets you redirect the pull around an anchor point.
Specifications
Specifications
- notes
- Brand: ARB, MPN 10100020A
- warranty
- 3 year
- mount type
- hook/shackle compatible snatch block
- restrictions
- Side plates sit snug to the pulley so the line cannot become trapped
- max load rating
- 20,000 lb (19,845 lb)
- pulley diameter
- 4.3 in
- pulley material
- HDPE composite polymer
- cable size range
- 0.3 to 0.5 in (1/4 to 1/2 in)
- rope cable range
- 1/4 in to 1/2 in synthetic rope or steel cable
- breaking strength
- 38,580 lb
- working load limit
- 20,000 lb
- side plate material
- 6mm cold rolled steel
- minimum breaking strength
- 38,500 lb
