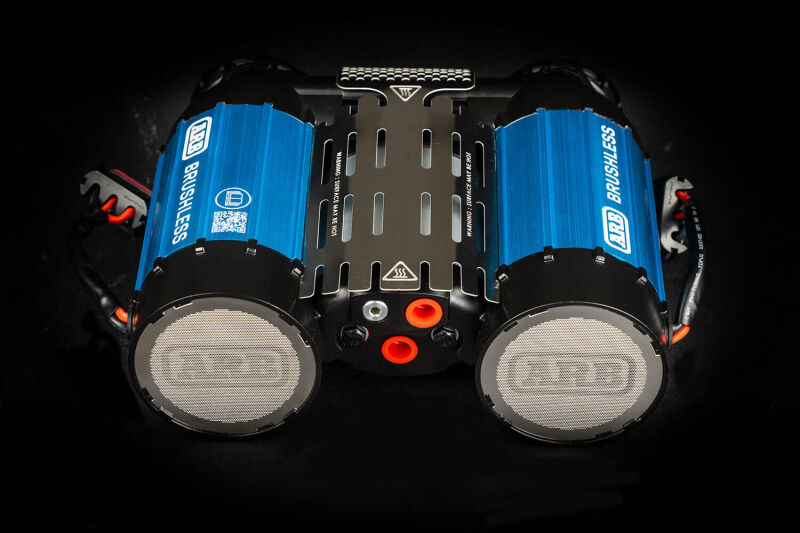

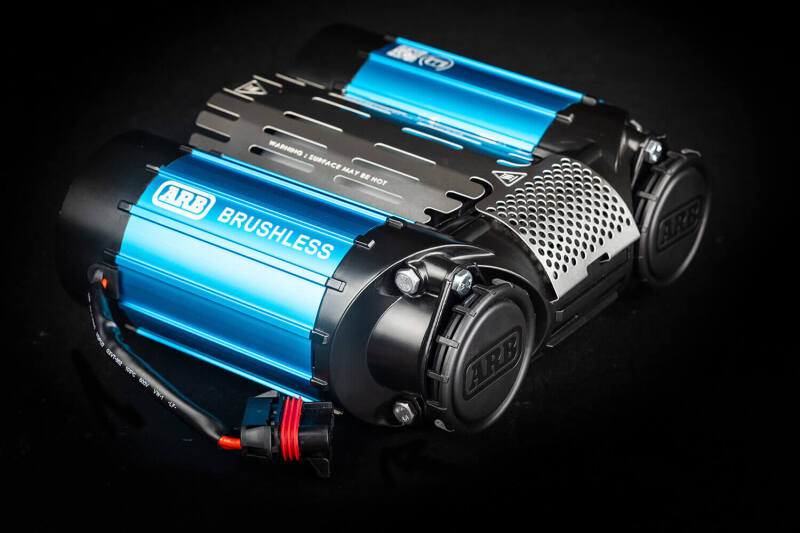

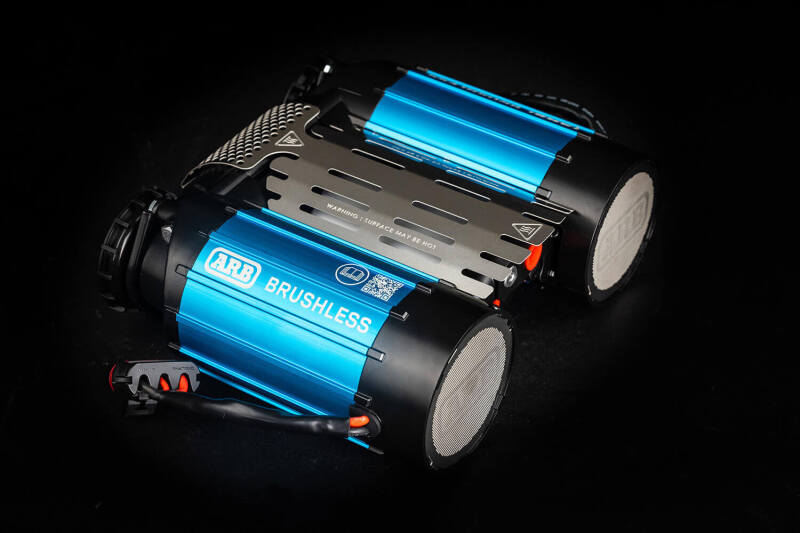

ARB CKBLTA12 Brushless Twin Motor 12V On-Board Air Compressor
ARB CKBLTA12 Brushless Twin Motor 12V On-Board Air Compressor
SKU:CKBLTA12
In stock
- Calculated shipping — oversized item
- Ships in 1–2 business days
- 30-day hassle-free returns
- Price match — found it cheaper?
- Secure checkout — SSL encrypted
Key Features
- Brushless twin-motor design eliminates relays and brush wear for long service life
- About 50% more output than ARB's market-leading brushed compressors
- True 100% duty cycle with active per-motor fan cooling
- 9.18 CFM at 0 PSI and 6.20 CFM at 29 PSI, up to 150 PSI
- IP67 rated for dust and water resistance
- Quick-release cam-lock mounts for easy removal
- Compatible with ARB Air Lockers, hose kits and air accessories
The ARB CKBLTA12 is a brushless twin-motor on-board 12V air compressor that delivers 9.18 CFM at 0 PSI with a true 100% duty cycle and IP67 dust and water resistance. It powers ARB Air Lockers, tire inflation and air tools with roughly 50% more output than ARB's brushed compressors.
Key Benefits
- Brushless twin-motor design eliminates relays and brush wear for long service life
- About 50% more output than ARB's market-leading brushed compressors
- True 100% duty cycle with active per-motor fan cooling
- IP67 rated for dust and water resistance in harsh conditions
- Quick-release cam-lock mounts let you remove the unit when not in use
What's Included
- ARB CKBLTA12 brushless twin-motor 12V air compressor with mounting hardware
Fitment
The CKBLTA12 is a universal 12V on-board air compressor and is not vehicle-specific. It is compatible with ARB Air Lockers, hose kits and the wider ARB air accessory range.
FAQ
FAQ
How much air does the CKBLTA12 move?
It delivers 9.18 CFM at 0 PSI and 6.20 CFM at 29 PSI, about 50% more than ARB's brushed compressors.
Can it run continuously?
Yes. It has a true 100% duty cycle with a dedicated cooling fan on each motor.
Is it weatherproof?
It is IP67 rated for dust and water resistance for use in mud, dust and water crossings.
Specifications
Specifications
- airflow
- 9.18 CFM at 0 PSI (6.20 CFM at 29 PSI)
- voltage
- 12V
- features
- Electronic Speed Control, Smart Start staggered power-on, active per-motor fan cooling
- duty cycle
- 100%
- motor type
- Brushless twin motor
- mount type
- Cam-lock quick-release
- max current
- 90 A
- max pressure
- 150 PSI
- air flow 0psi
- 9.18 CFM
- air flow 29psi
- 6.20 CFM
- ingress rating
- IP67
- product weight
- approx. 15.8 lb
- max current draw
- 90 amps
- ingress protection
- IP67 (dust and water resistant)
