AMP Research

AMP PowerStep XL for 2002-2003 Ford F-250/350/450 Crew Cab

Name: AMP PowerStep XL for 2002-2003 Ford F-250/350/450 Crew Cab
Brand: AMP Research
SKU: 77106-01A
Price: 2299.99 USD
Availability: InStock

$2,299.99 USD

Sale Sold out

Shipping calculated at checkout.

SKU:77106-01A

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Auto-deploys when a door opens and retracts flush under the rocker when the doors close
Extends about 4 in. lower and farther out than the standard PowerStep for tall and lifted trucks
Extruded aluminum step, 6 in. wide with non-slip tread, rated to support 600 lb per side
Die-cast aluminum PTFE-coated linkage with stainless steel pivot pins
Weather-sealed electric motors and integrated LED step lights
Complete two-side kit with vehicle-specific brackets, wiring harness, and hardware
Backed by AMP Research's 5-year/60,000-mile limited warranty

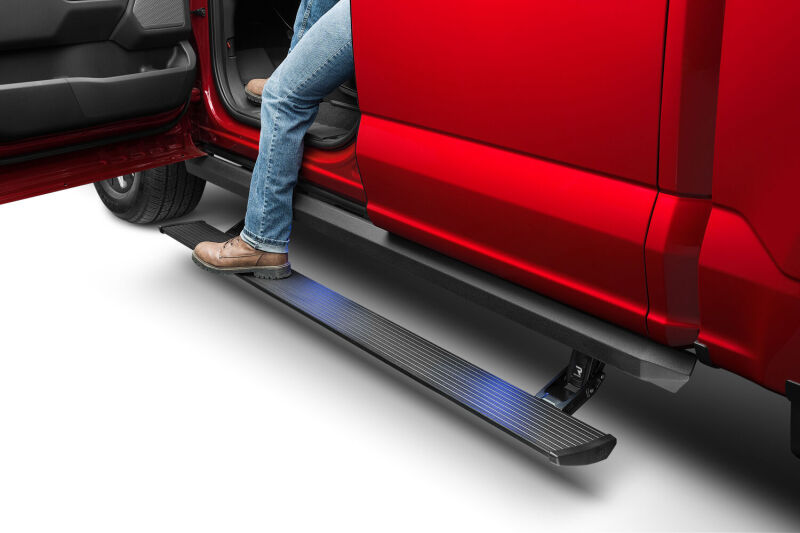

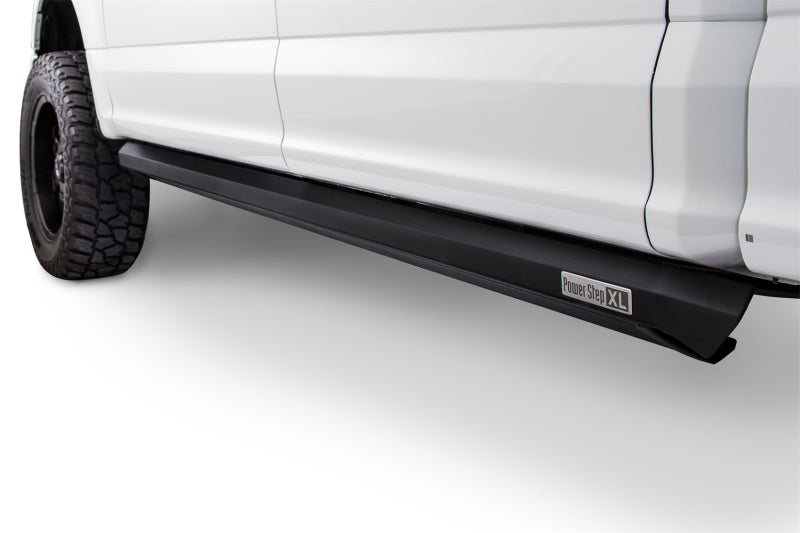

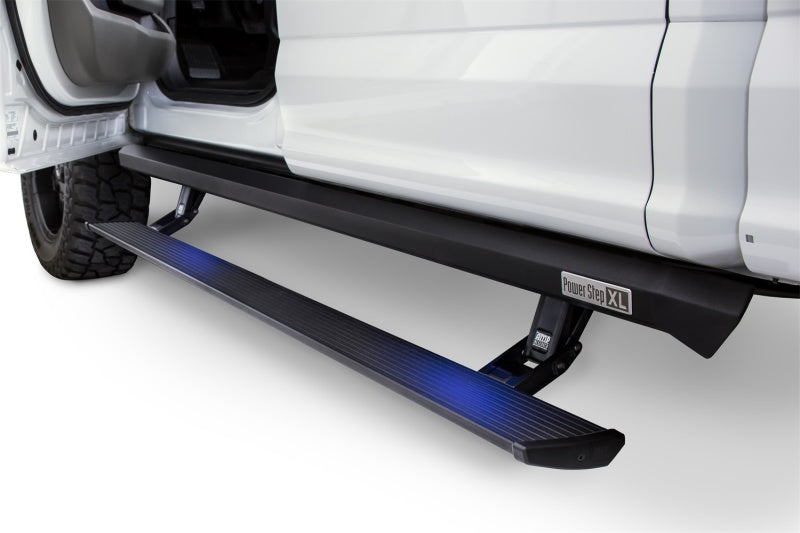

The AMP Research PowerStep XL (77106-01A) is a complete pair of extended-drop electric retractable running boards for the 2002-2003 Ford F-250, F-350, and F-450 Super Duty Crew Cab. Each board drops down the instant a door opens - reaching about 4 inches lower and farther out than the standard PowerStep - and retracts flush under the cab when the doors close.

Why owners choose it

Auto-deploys the instant a door opens, then retracts flush under the rocker a few seconds after the doors close.
Extends farther down and out than the standard PowerStep — about 4 in. lower — for an easier step into tall and lifted trucks.
Extruded aluminum step board, 6 in. wide with a non-slip tread, rated to support 600 lb per side.
Die-cast aluminum linkage with PTFE coating and stainless steel pivot pins resist corrosion.
Weather-sealed electric motors and integrated LED step lights.

What's included

Sold as a complete kit for both sides of the truck. Includes the driver- and passenger-side PowerStep XL assemblies with motors, a vehicle-specific wiring harness and control module, mounting brackets and hardware, integrated LED step lights, and an installation guide. Drilling is required and professional installation is recommended.

Specifications

Type: Electric retractable running boards, XL extended-drop (sold as a pair)
Reach: Extends about 4 in. lower and farther out than the standard PowerStep
Material: Extruded aluminum step with textured black powdercoat finish
Linkage: Die-cast aluminum, anodized and PTFE-coated, with stainless steel pivot pins
Step width: 6 in. with non-slip tread
Load rating: 600 lb per side
Lighting: Integrated LED step lights
Warranty: 5-year/60,000-mile limited manufacturer warranty

Fitment

Fits 2002-2003 Ford F-250, F-350, and F-450 Super Duty in Crew Cab only. Does not fit SuperCab or Regular Cab. (F-450 fitment is per dealer listings; the AMP catalog lists F-250/F-350.)

Which AMP step fits your truck

The XL drops farther than the standard PowerStep, making it the choice for tall or lifted Super Duty trucks. The 2004-2007 Super Duty Crew Cab uses the XL 77104-01A instead. Match your model year and cab before ordering.

FAQ

How is the PowerStep XL different from the standard PowerStep?

The XL extends about 4 inches lower and farther out than the standard PowerStep, making it easier to step into tall or lifted trucks. Both share the same 6-inch aluminum board and 600 lb-per-side rating.

Does the 77106-01A fit a 2004 Super Duty?

No. This part covers the 2002-2003 Super Duty Crew Cab; the 2004-2007 Super Duty uses the XL 77104-01A.

Does installation require drilling?

Yes. Mounting the brackets requires drilling and AMP recommends professional installation. The kit includes vehicle-specific brackets, a wiring harness and control module, and an installation guide.

What warranty does AMP Research provide?

AMP backs the PowerStep with a 5-year/60,000-mile limited warranty against defects in materials and workmanship.
