AMP PowerStep Plug N Play for 2015-2020 Ford F-150

Name: AMP PowerStep Plug N Play for 2015-2020 Ford F-150
Brand: AMP Research
SKU: 76151-01A
Price: 1849.99 USD
Availability: InStock

$1,849.99 USD

Sale Sold out

Shipping calculated at checkout.

SKU:76151-01A

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Auto-deploys when a door opens and retracts flush under the rocker when the doors close
Plug-N-Play harness plugs into the factory OBD-II connector - no wire cutting or splicing
Extruded aluminum step, 6 in. wide with non-slip tread, rated to support 600 lb per side
Die-cast aluminum PTFE-coated linkage with stainless steel pivot pins
Weather-sealed electric motors and integrated LED step lights
Complete two-side kit with vehicle-specific brackets, harness, and hardware
Backed by AMP Research's 5-year/60,000-mile limited warranty

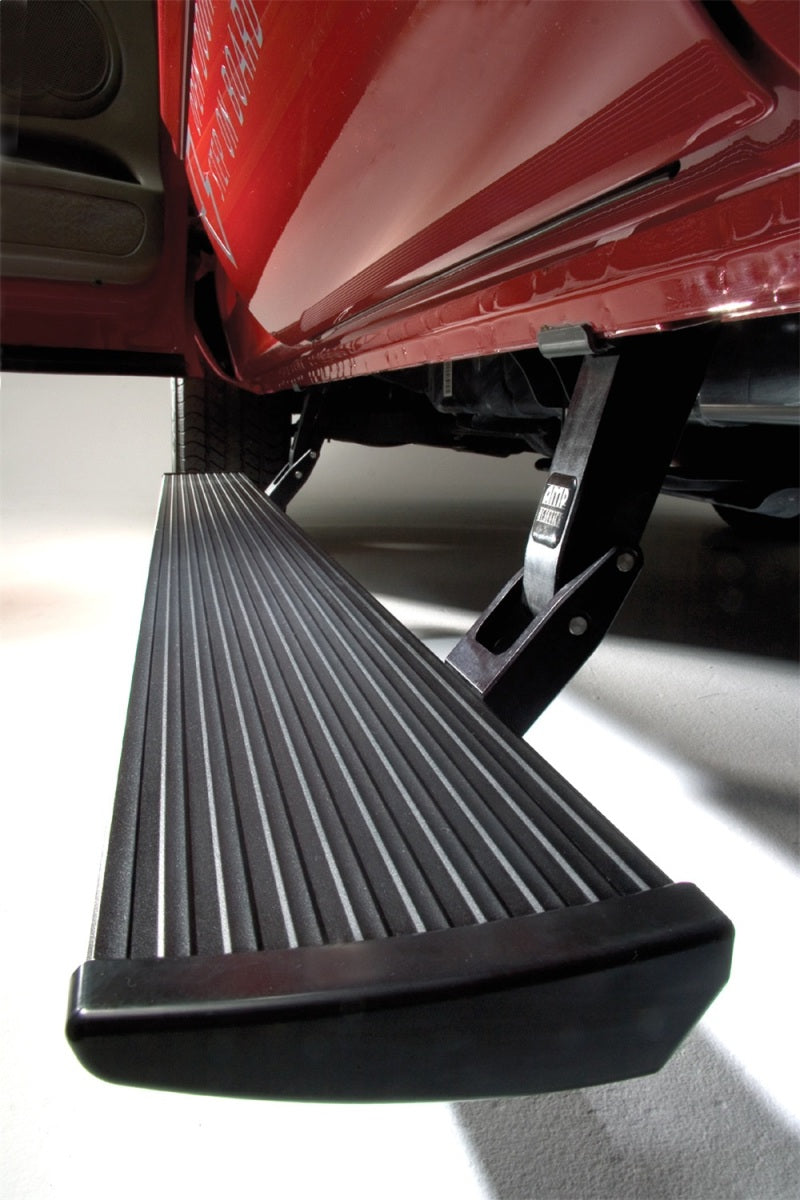

The AMP Research PowerStep Plug-N-Play (76151-01A) is a complete pair of electric retractable running boards for the 2015-2020 Ford F-150 in all cab configurations. Each board deploys the instant a door opens and retracts flush under the cab when the doors close, and the harness plugs into the factory OBD-II connector with no wire splicing.

Why owners choose it

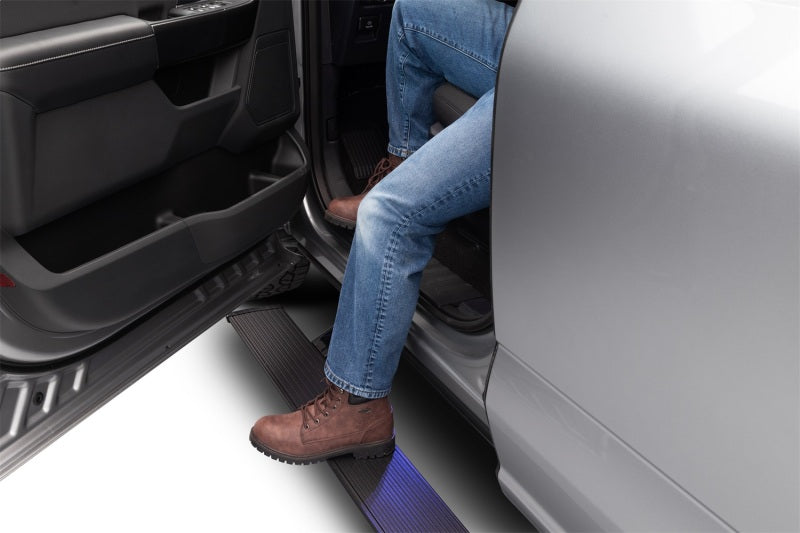

Auto-deploys the instant a door opens, then retracts flush under the rocker a few seconds after the doors close.
Plug-N-Play wiring: the vehicle-specific harness plugs into the factory OBD-II connector, so no factory wires are cut or spliced.
Extruded aluminum step board, 6 in. wide with a non-slip tread, rated to support 600 lb per side.
Die-cast aluminum linkage with PTFE coating and stainless steel pivot pins resist corrosion.
Weather-sealed electric motors and integrated LED step lights for all-weather, night-time use.

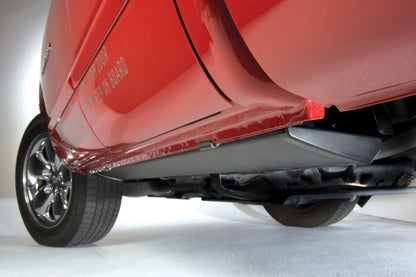

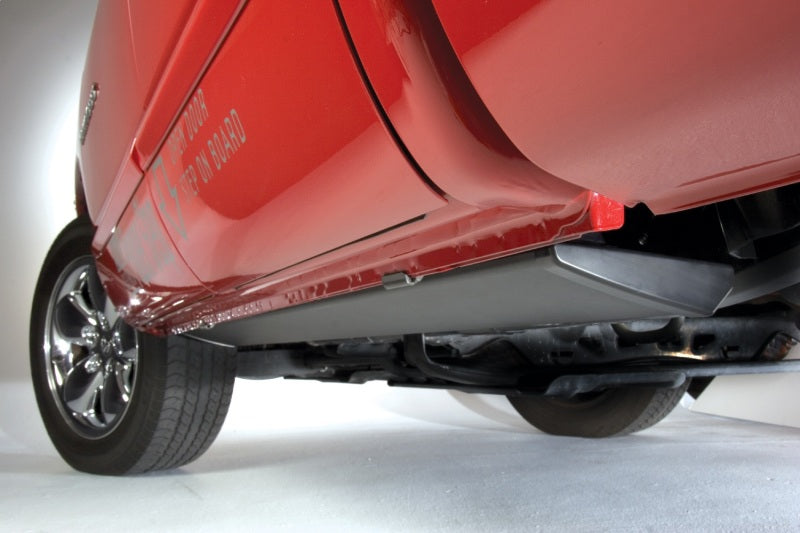

Hidden under the rocker when retracted for full ground clearance and a clean factory look.

What's included

Sold as a complete kit for both sides of the truck. Includes the driver- and passenger-side PowerStep assemblies with motors, a vehicle-specific Plug-N-Play wiring harness and control module that connect to the factory OBD-II connector with no splicing, mounting brackets and hardware, integrated LED step lights, and an installation guide.

Specifications

Type: Electric retractable running boards, Plug-N-Play (sold as a pair)
Wiring: Vehicle-specific plug-in harness to the factory OBD-II connector — no splicing
Material: Extruded aluminum step with textured black powdercoat finish
Linkage: Die-cast aluminum, anodized and PTFE-coated, with stainless steel pivot pins
Step width: 6 in. with non-slip tread
Load rating: 600 lb per side
Motors: Two (one per side), weather-sealed
Lighting: Integrated LED step lights
Warranty: 5-year/60,000-mile limited manufacturer warranty

Fitment

Fits 2015-2020 Ford F-150 in SuperCab and SuperCrew, and Regular Cab with the electronic parking brake. Does not fit the Raptor, does not fit Super Duty, and does not fit the 2021-and-newer F-150 (which uses 76152-01A).

Which AMP step fits your truck

This 76151-01A is the Plug-N-Play kit for the 2015-2020 F-150; the 2009-2014 F-150 uses 76141-01A and the 2021-2024 F-150 uses 76152-01A. Match your model year before ordering.

FAQ

Do I have to cut or splice any factory wires?

No. The PowerStep Plug-N-Play uses a vehicle-specific harness that plugs into the factory OBD-II connector, so no wire cutting or splicing is required.

Does the 76151-01A fit a Raptor?

No. This application does not fit the F-150 Raptor or Super Duty. It fits the 2015-2020 F-150 (Regular Cab requires the electronic parking brake).

Is the PowerStep sold as a pair?

Yes. This part number includes both the driver- and passenger-side PowerStep assemblies as a complete two-side kit.

What warranty does AMP Research provide?

AMP backs the PowerStep with a 5-year/60,000-mile limited warranty against defects in materials and workmanship.
