AMP Research

AMP PowerStep for 2016-2019 Nissan Titan & Titan XD All Cabs

Name: AMP PowerStep for 2016-2019 Nissan Titan & Titan XD All Cabs
Brand: AMP Research
SKU: 75120-01A
Price: 1599.99 USD
Availability: InStock

AMP PowerStep for 2016-2019 Nissan Titan & Titan XD All Cabs

$1,599.99 USD

Sale Sold out

Shipping calculated at checkout.

SKU:75120-01A

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Auto-deploys the instant a door opens and retracts flush under the rocker when the doors close
Extruded aluminum step, 6 in. wide with non-slip tread, rated to support 600 lb per side
Die-cast aluminum linkage with PTFE coating and stainless steel pivot pins resist corrosion
Weather-sealed electric motors and weathertight connectors for all-weather operation
Integrated LED step lights illuminate the step area at night
Complete two-side kit with vehicle-specific brackets, hardware, and wiring harness
Backed by AMP Research's 5-year/60,000-mile limited warranty

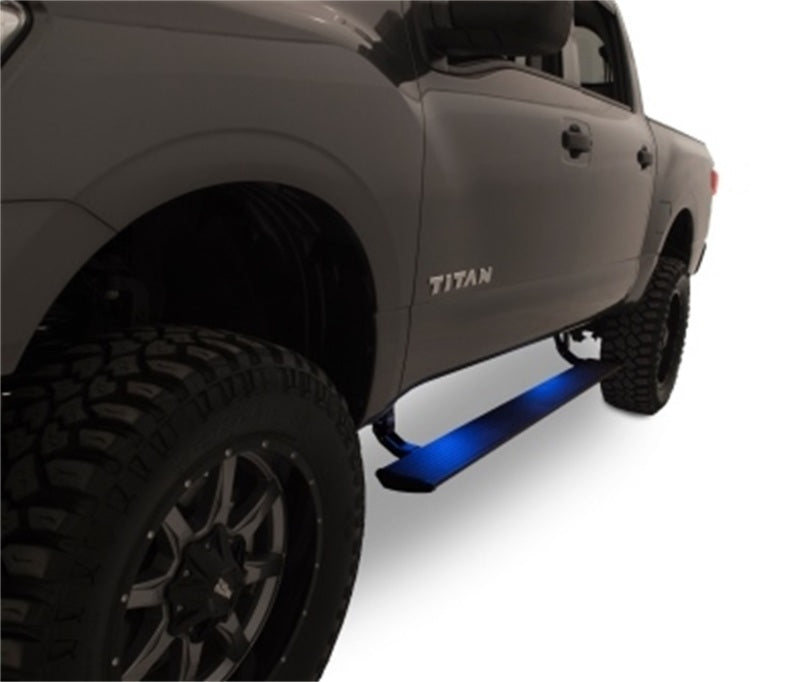

The AMP Research PowerStep (75120-01A) is a complete pair of electric retractable running boards for the 2017-2019 Nissan Titan and the 2016-2019 Nissan Titan XD in King Cab and Crew Cab. Each board drops down the instant a door opens and retracts flush under the cab a few seconds after the doors close.

Why owners choose it

Auto-deploys the instant a door opens, then retracts flush under the rocker a few seconds after the doors close — out of sight when not in use.
Extruded aluminum step board, 6 in. wide with a non-slip tread, rated to support 600 lb per side.
Die-cast aluminum linkage with military-grade PTFE coating and stainless steel pivot pins resist corrosion.
Weather-sealed electric motors and weathertight wiring connectors stand up to mud, salt, and all-weather use.
Integrated LED step lights illuminate the step area at night.
Hidden under the rocker when retracted for full ground clearance and a clean factory look.

What's included

Sold as a complete kit for both sides of the truck. Includes the driver- and passenger-side PowerStep assemblies with motors, a vehicle-specific wiring harness and control module, mounting brackets and hardware, integrated LED step lights, and an installation guide. Drilling is required and professional installation is recommended.

Specifications

Type: Electric retractable running boards (sold as a pair)
Material: Extruded aluminum step with textured black powdercoat finish
Linkage: Die-cast aluminum, anodized and PTFE-coated, with stainless steel pivot pins
Step width: 6 in. with non-slip tread
Load rating: 600 lb per side
Motors: Two (one per side), weather-sealed
Lighting: Integrated LED step lights
Warranty: 5-year/60,000-mile limited manufacturer warranty

Fitment

Fits 2017-2019 Nissan Titan in King Cab and Crew Cab. Fits 2016-2019 Nissan Titan XD in King Cab and Crew Cab.

Which PowerStep fits your truck

This 75120-01A is the standard hardwired PowerStep for these Titan trucks. AMP also offers a Plug-N-Play version, 76120-01A, that uses a no-splice, vehicle-specific OEM harness — both fit the same trucks, so choose by the wiring install you prefer.

FAQ

What is the difference between the 75120-01A and the 76120-01A?

Both fit the 2016-2019 Titan/Titan XD. The 75120-01A is the standard hardwired kit; the 76120-01A is the Plug-N-Play version with a no-splice OEM wiring harness.

Is the PowerStep sold as a pair?

Yes. This part number includes both the driver- and passenger-side PowerStep assemblies as a complete two-side kit.

Does installation require drilling?

Yes. Installation requires drilling and AMP recommends professional installation. The kit includes vehicle-specific brackets, a wiring harness and control module, and an installation guide.

What warranty does AMP Research provide?

AMP backs the PowerStep with a 5-year/60,000-mile limited warranty against defects in materials and workmanship.
