Rugged Radios GMRS and UHF No Ground Plane NGP Tuned Whip Antenna
Rugged Radios GMRS and UHF No Ground Plane NGP Tuned Whip Antenna
SKU:POINT5
Available — ships in 1–2 business days
- Free shipping on orders $250+
- Ships in 1–2 business days
- 30-day hassle-free returns
- Price match — found it cheaper?
- Secure checkout — SSL encrypted
Key Features
- 12.5-inch whip tuned for 406-470 MHz — covers GMRS and UHF business band
- No-ground-plane (NGP) design works on fiberglass and plastic-bodied vehicles
- Base built with silver-soldered connections and gold-plated push-pin contacts
- O-ring sealed mounting base for off-road conditions
- Metal-roof placement recommended for maximum range

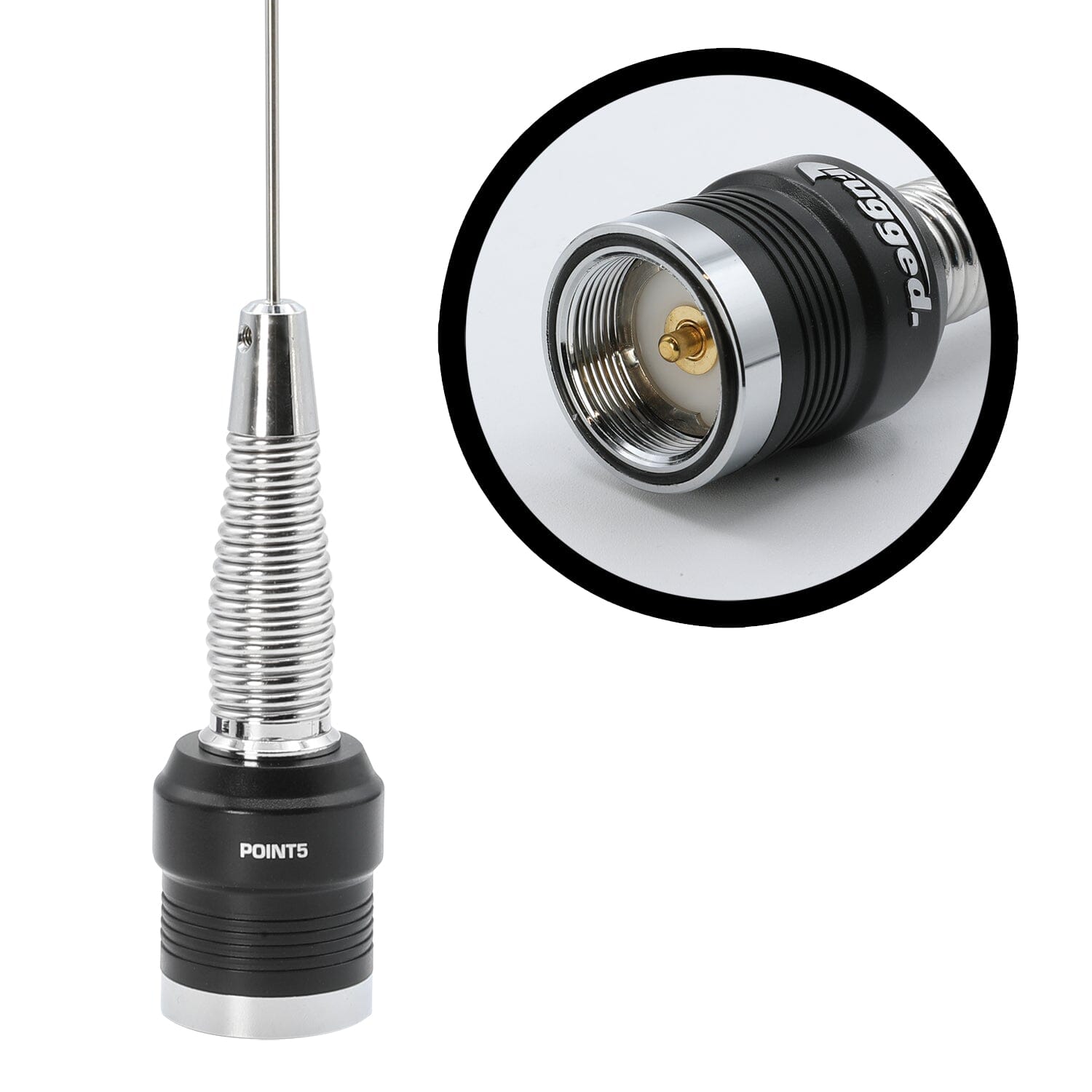

The Rugged Radios POINT5 is a 12.5-inch no-ground-plane (NGP) tuned whip antenna for UHF and GMRS mobile radios, covering 406-470 MHz. Because it is NGP-tuned, it delivers strong performance on UTVs and vehicles that lack the large metal ground plane a conventional whip needs.
Compatibility

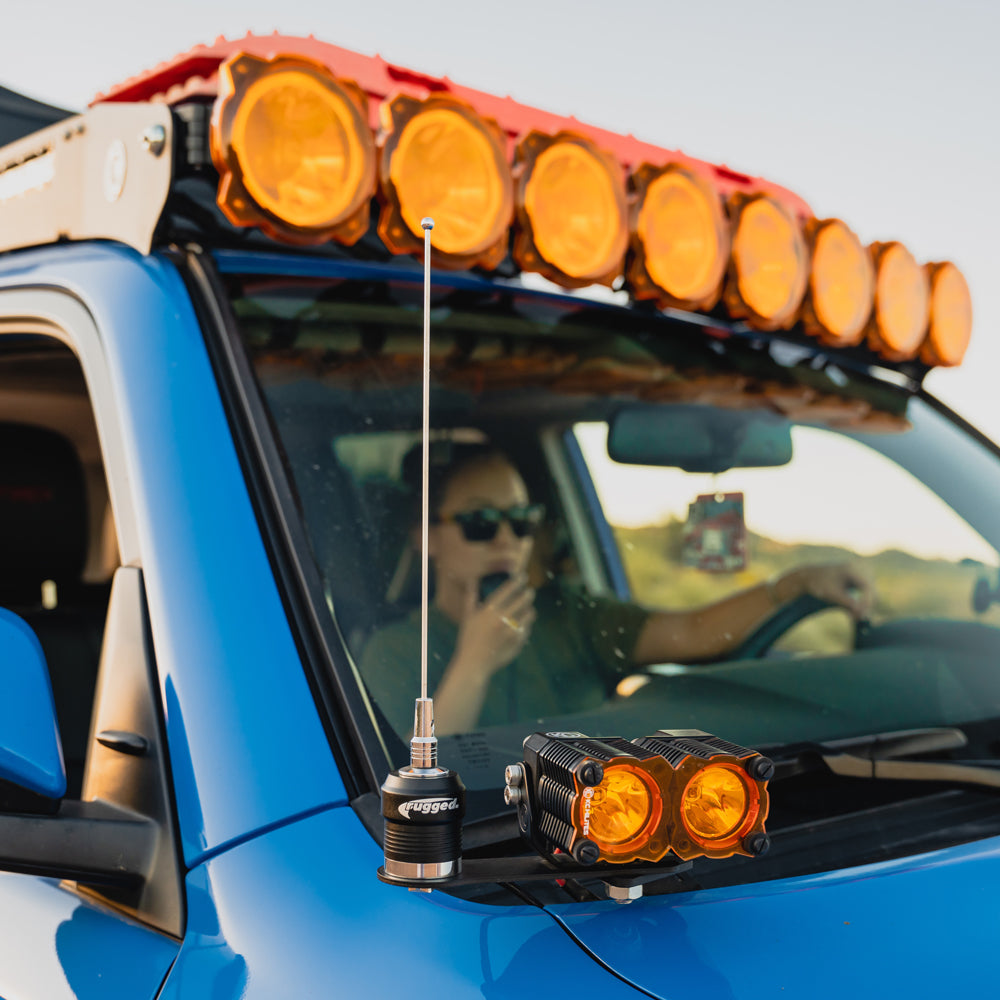

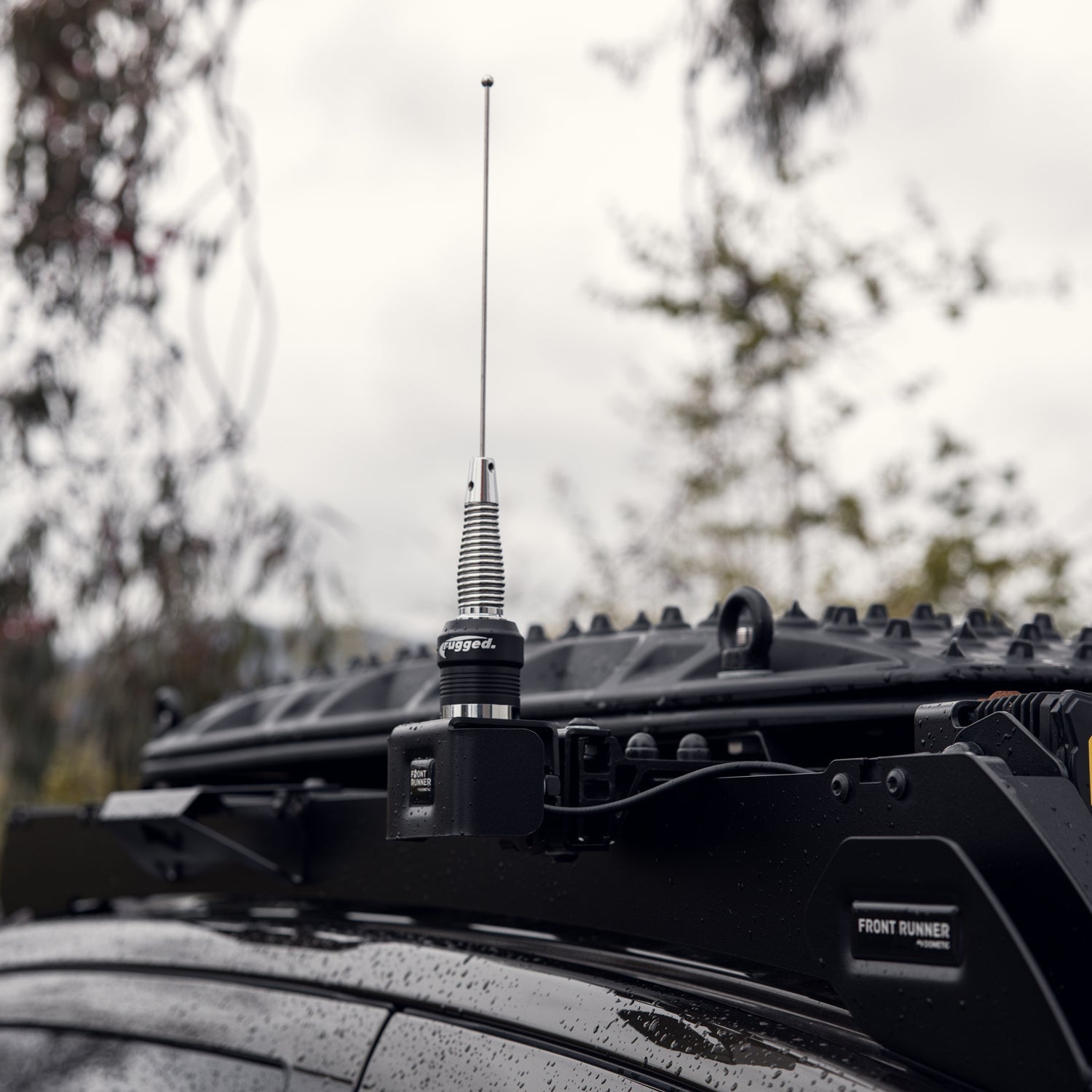

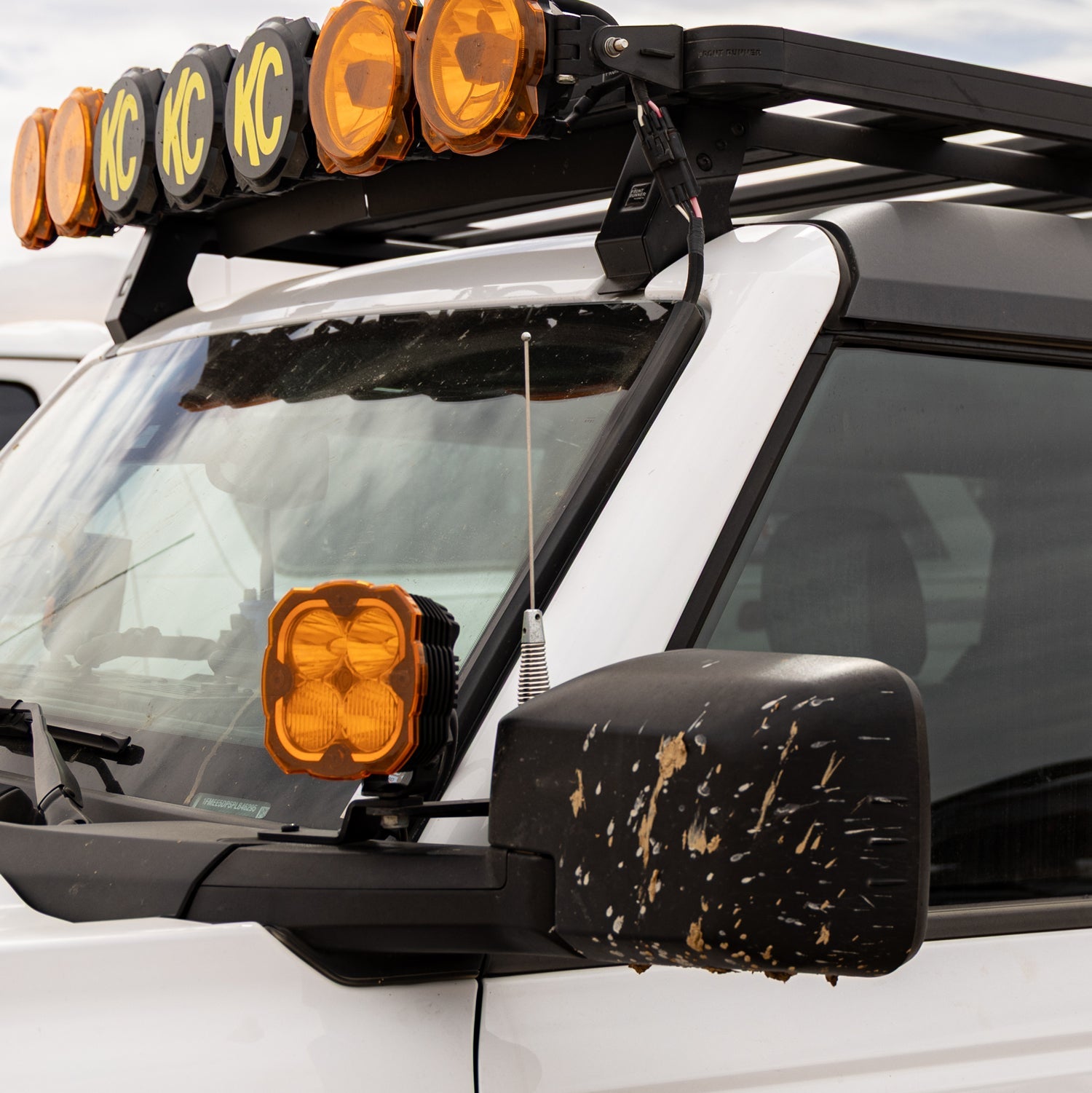

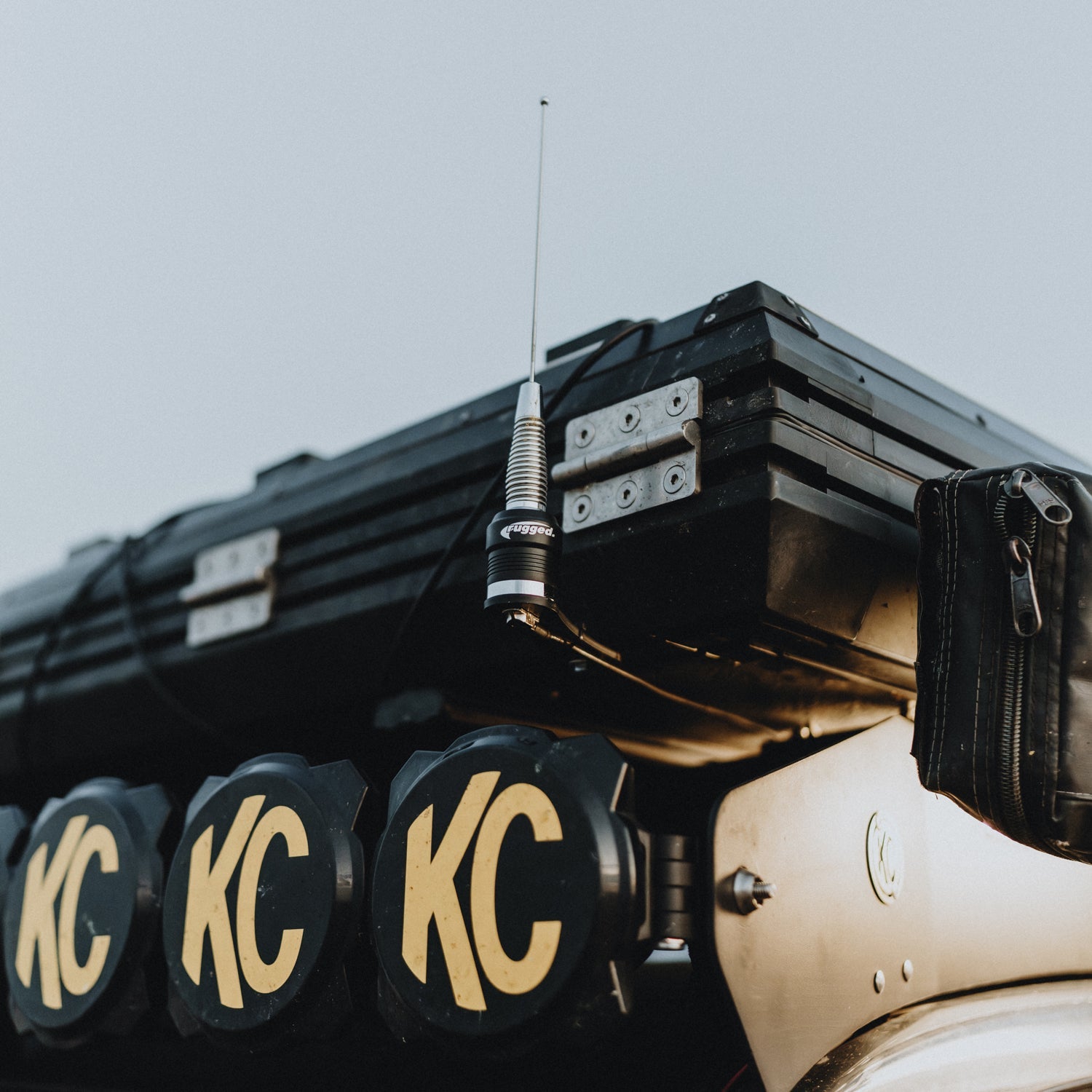

The 406-470 MHz range covers the GMRS channels used by Rugged GMRS mobile radios as well as UHF business frequencies, so one antenna serves either band. Rugged recommends mounting on a metal roof or panel for the strongest signal, with placement and surface prep covered in its tech installation guide.
Specifications
- Length: 12.5 in whip
- Frequency range: 406-470 MHz (UHF, including GMRS)
- No-ground-plane (NGP) tuned design
- Mounting base with silver-soldered connections, gold-plated push-pin contacts and o-ring
Sold as a single antenna.
FAQ
FAQ
Does this antenna need a metal ground plane?
No. The POINT5 is NGP (no ground plane) tuned, so it performs on fiberglass, plastic or tube-mounted installs; Rugged still recommends metal-roof placement for maximum range.
Will it work with my GMRS radio?
Yes — it is tuned for 406-470 MHz, which covers GMRS channels as well as UHF business-band frequencies.
How long is it?
The whip measures 12.5 inches, a compact length suited to trail riding.
