TrueAm Battery Isolator UTV-SBI-18

TrueAm has just introduced a new battery isolation product for the UTV marketplace.  Developed from years of interaction with, and feedback from, UTV owners worldwide we are proud to introduce the completely new TRUE UTV-SBI-18

 This is the first and only Smart Battery Isolator designed from the ground up exclusively to meet the demanding needs of the UTV marketplace.

The TRUE-AM  UTV-SBI-18 has been designed for efficiency focusing on every aspect of installation and operation on today’s stator based electrical systems.  It is designed with TrueAm’s  PEP® programming which insures you maximum efficiency and battery attribute protection.  It is:

• Smaller
• Smarter
• Stronger
• More durable with stud placement that allows for simple easy connection.

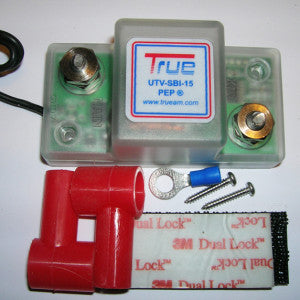

Specifically designed to leave suspended or mount to any flat clean surface (even the battery case) with the included 3M Dual Lock™ or any other surface with the included screws.  The consumers have spoken and we listened.

How it works

1. When the engine is running and the charging source raises the voltage of  the start battery to 13.4 volts* (cut in threshold), the True Smart Battery Isolator (SBI) engages and connects the two batteries to charge simultaneously.   The SBI’s internal LED will glow blue.

2. When all voltage sources drops below 12.9 volts* (cut out threshold) the SBI will disengage and the blue LED will go out.

3. When the SBI LED is out the batteries are separated thus preventing the power of your start battery from being drained by use of the accessories powered from the second battery.

4. When the vehicle is restarted and the start battery has recharged to 13.4 volts* the SBI engages, the LED will illuminate and the second battery is connected to receive charging.

*The True SBI is programmed with a 10 second delay
before engaging or disengaging.
