ICON 05-15 TACOMA 0-3.5"/ 16-UP 0-2.75" STAGE 5 LIFT KIT WITH TUBULAR UCA

SKU: K53005T
Sale price
$3,425.59
Regular price
$3,984.54
You save
$558.95 (14%)
Out of stock

Stock Notification

Get notified when this product is available again

We Accept

American Express
Apple Pay
Diners Club
Discover
Meta Pay
Google Pay
Mastercard
PayPal
Shop Pay
Visa

Frequently Bought Together

ICON Vehicle Dynamics 2005-UP Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 5 system includes vehicle-specific tuned 2.5” Extended Travel coilover shocks featuring a remote reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-UP models allowing the use of larger more aggressive wheel and tire combinations. When used with an ICON upper control arm ICON extended travel coilovers add increased droop travel to the front suspension. ICON 2.5 Aluminum Series remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-UP Toyota Tacoma 4WD/PreRunner Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball and at the same time capable of greater angularity than a typical ball joint.

FEATURES & BENEFITS

  • Increased wheel travel and ride quality over stock
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • · Adjustable coilovers with CDCV provide up to 3.5" of front lift height on 2005 to 2015 models and up to 2.75" on 2016-up models
  • Extended Travel coilovers matched with ICON UCA provides increased front droop travel
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • FK Rod End bearings for extended longevity and minimal deflection
  • Bolt-on system means no cutting or welding necessary for install

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9 with 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9 with 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • APPLICATION NOTE #109: 2016-UP TACOMA LIFT RANGE IS 0-2.75”
  • APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE
  • APPLICATION NOTE #111: BUMP STOP SPACER KIT 51045 CAN BE INSTALLED TO INCREASE PRELOAD .25” BEYOND MAXIMUM
  • TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25" and 1" of rear lift over stock
  • Ships in Multiple Boxes

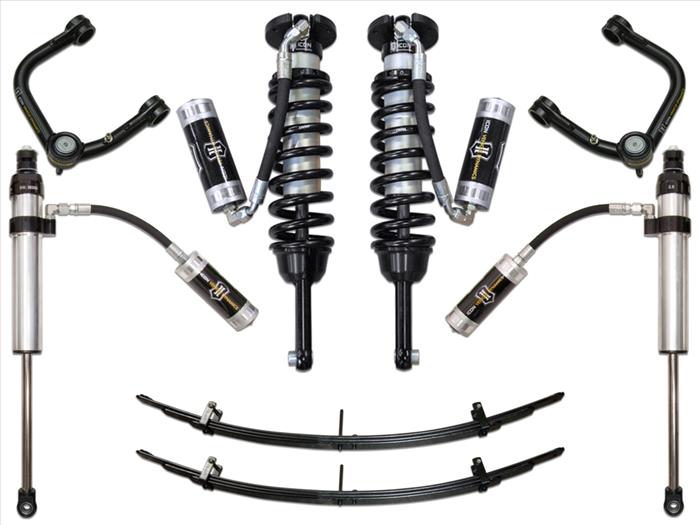

SYSTEM COMPONENTS:



  • 58735 (QTY: 1) | 05-UP TACOMA EXT TRAVEL 2.5 VS RR COILOVER KIT
  • 58450DJ (QTY: 1) | 05-UP TACOMA TUBULAR UCA DJ KIT
  • 51100 (QTY: 1) | 96-UP TACOMA/00-06 TUNDRA 1.5" ADD-A-LEAF KIT
  • 57805P (QTY: 1) | 05-UP TACOMA 0-1.5" REAR 2.5 VS RR PAIR
